Delock 12002 12002 LTE antenna 11 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)

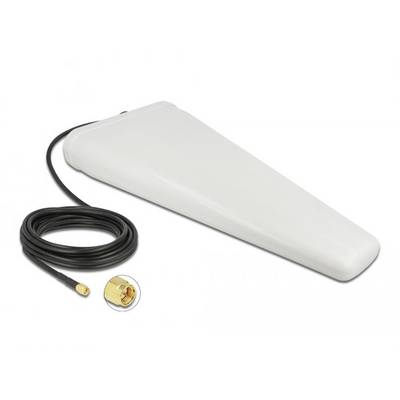

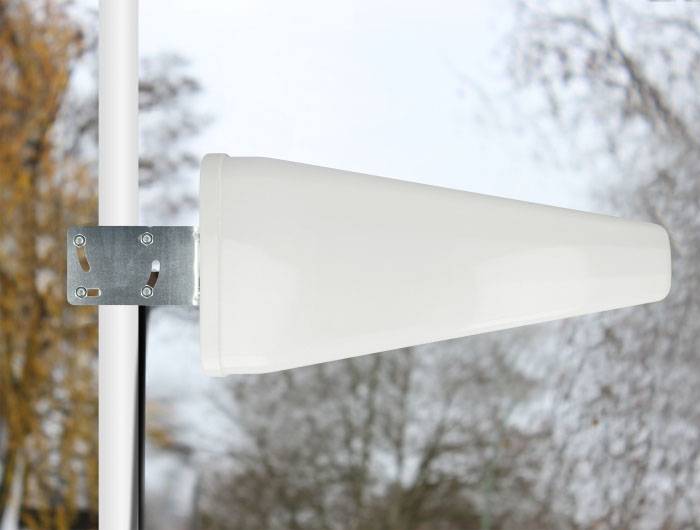

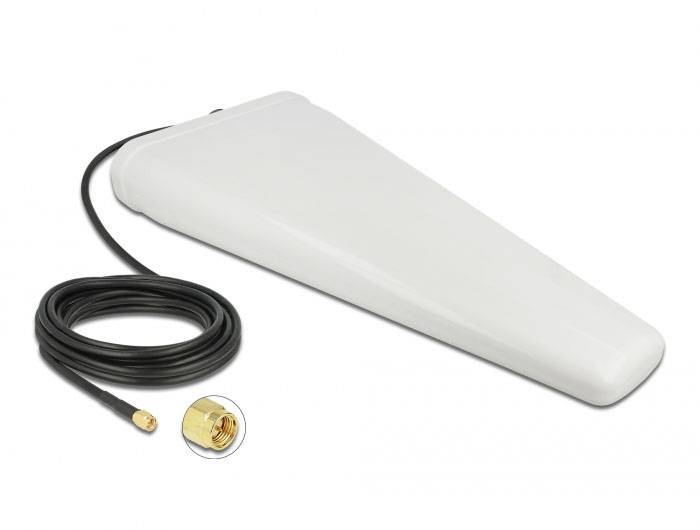

Delock LTE antenna SMA plug 9 - 11 dB directional with connection cable (RG-58, 5 m) white outdoor
Highlights & Details
- Directional antenna SMA white
- 11 dBi
- 1.71 - 2.7 GHz
- 50 Ohm
- Vertical polarization
- Energy source: AC
Technical specifications
- 1.71 - 2.7 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
11 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.96
- No. of ports
1
- Polarisation
Vertical
- Width
210 mm
- Height
65 mm
- Length
450 mm
- Cable design
Round
- Cable length
0 cm
- Version
Cable
- Factory colour
White
- Depth
450 mm
IP55
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 60 °C
- Quantity per pack
1 Stück(e)
- Power handling
50 W
- Horizontal beam width
70°
- Vertical beam width
55°
Documents & Downloads
Datasheet
Datasheet 3382093 Delock 12002 12002 LTE antenna 11 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382093 Delock 12002 12002 LTE antenna 11 dBi 2.4 GHz
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatibility.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- LTE tape:1-4; 7; 9; 10; 15; 16; 20; 23; 25; 27; 30; 33 - 41
- Frequency range 698 - 960 MHz, 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
- Antenna gain 9 - 11 dBi
- Polarisation: Vertical
- 70° horizontal angle of radiation
- Vertical angle of radiation 55°
- Impedance: 50 ohm
- VSWR: ≤1.5
- Operating temperature: -40 °C ~ 60 °C
- Case material: ABS UV-protected
- Colour: white
- Dim. (LxWxH): Approx. 450 x 210 x 65 mm
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.5 dB @ 800 MHz per meter
- Cable diameter: Approx. 5 mm
- Cable length incl. connections: Approx. 5 m.
System requirements
- Device with a free SMA socket
