Delock 12020 12020 SMA adapter SMA plug - SMA plug 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SMA adapter
Type A
SMA plug
Type B
SMA plug
Connector type
Adapter
Datasheet (PDF)
Highlights & Details

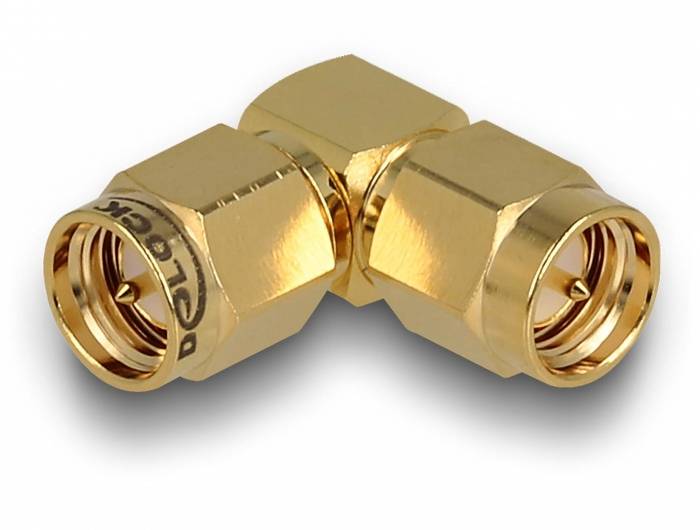

Adapter SMA plug to SMA plug 90°
- SMA plug - SMA plug
Technical specifications
- Connection 1: SMA
- Connection 2: SMA
- Connection1 Form factor: Angled
- Connection 2 Form factor: Angled
- Packaging type
Piece
- Product type
SMA adapter
- Type A
SMA plug
- Type B
SMA plug
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
12020
- Factory colour
Brass
- Insulation material
Brass gold plated
- Type
12020
- Version
Adapter
- Depth
17.1 mm
- Height
8 mm
- Width
17.1 mm
- Cable use
Networks
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382169 Delock 12020 12020 SMA adapter SMA plug - SMA plug 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3382169 Delock 12020 12020 SMA adapter SMA plug - SMA plug 1 pc(s) Piece
Description
This adapter by Delock is suitable for connection of components of the high-frequency technology.
This text is machine translated.
This text is machine translated.
Features

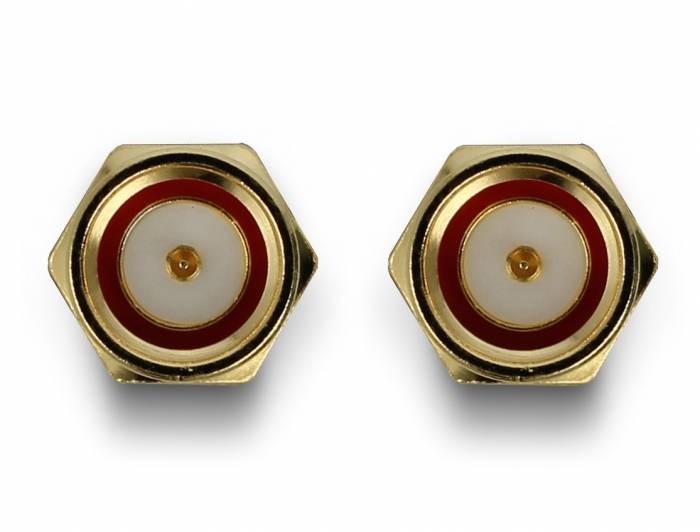

- Connections:
- 1 x SMA plug
- 1 x SMA plug
- Impedance: 50 ohm
- 90° angled
- Housing: Gold-plated brass
- Dim. (LxWxH): Approx. 17.1 x 17.1 x 8.0 mm
System requirements
- Device with a free SMA connection
