Delock 12064 12064 CMOS colour camera unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

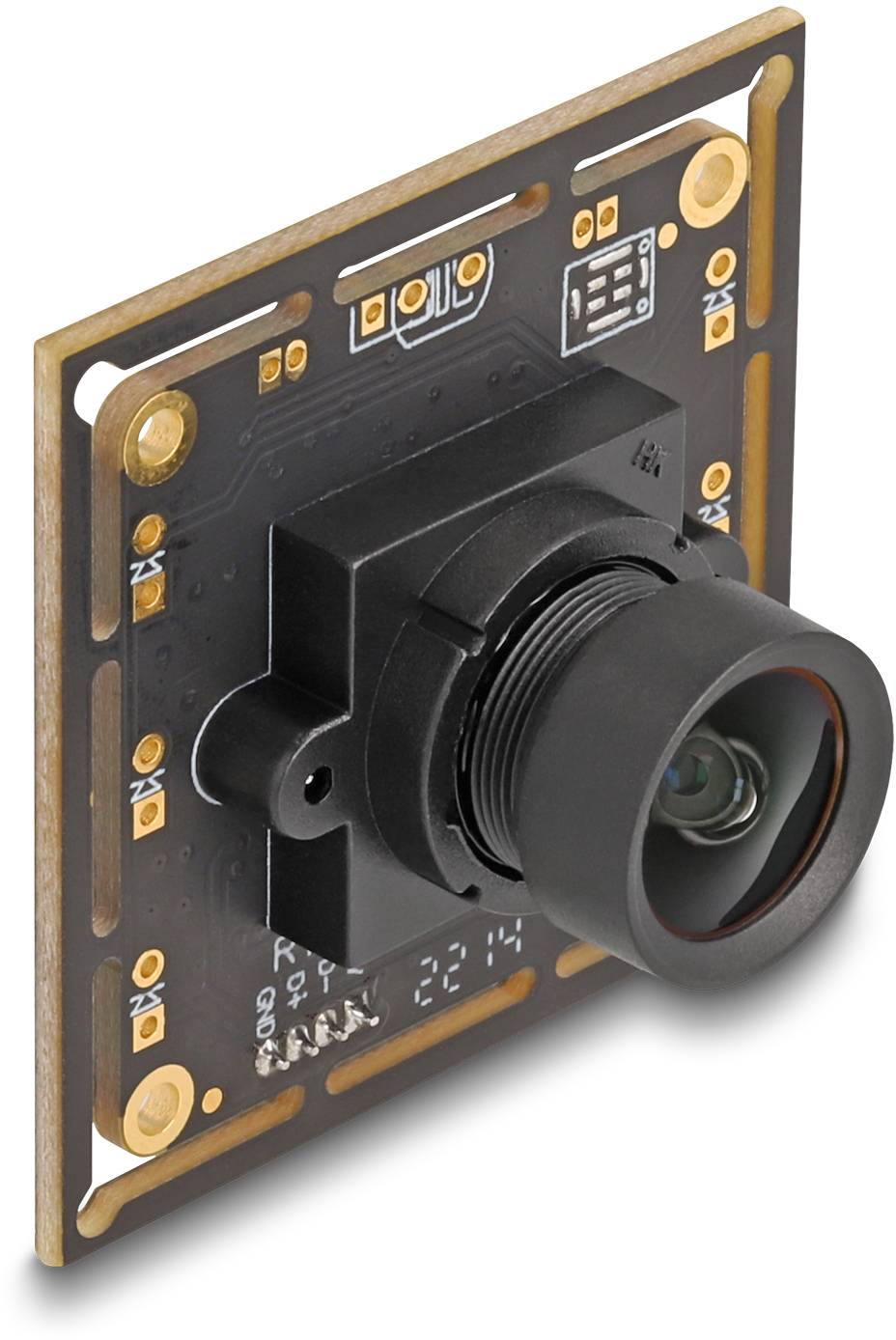

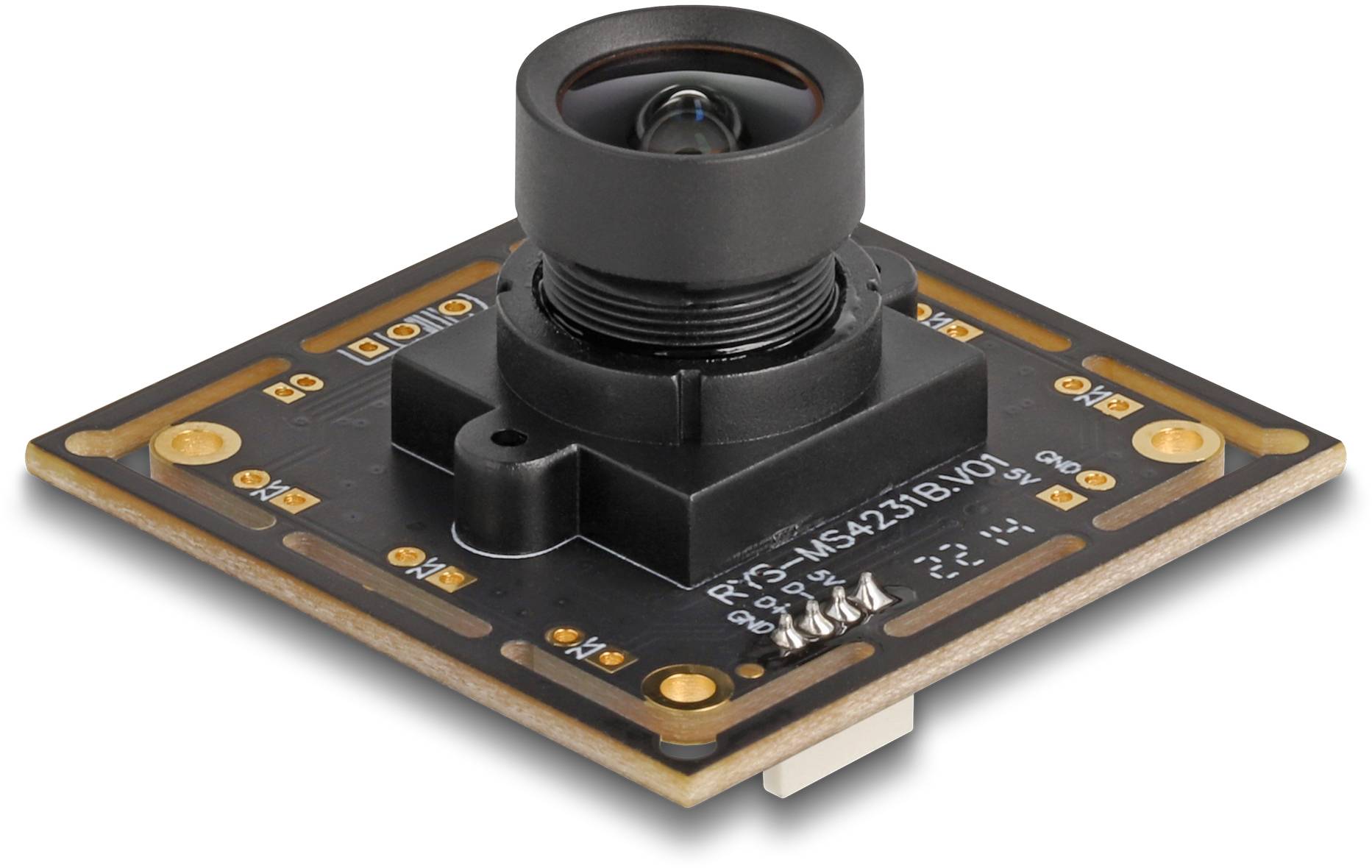

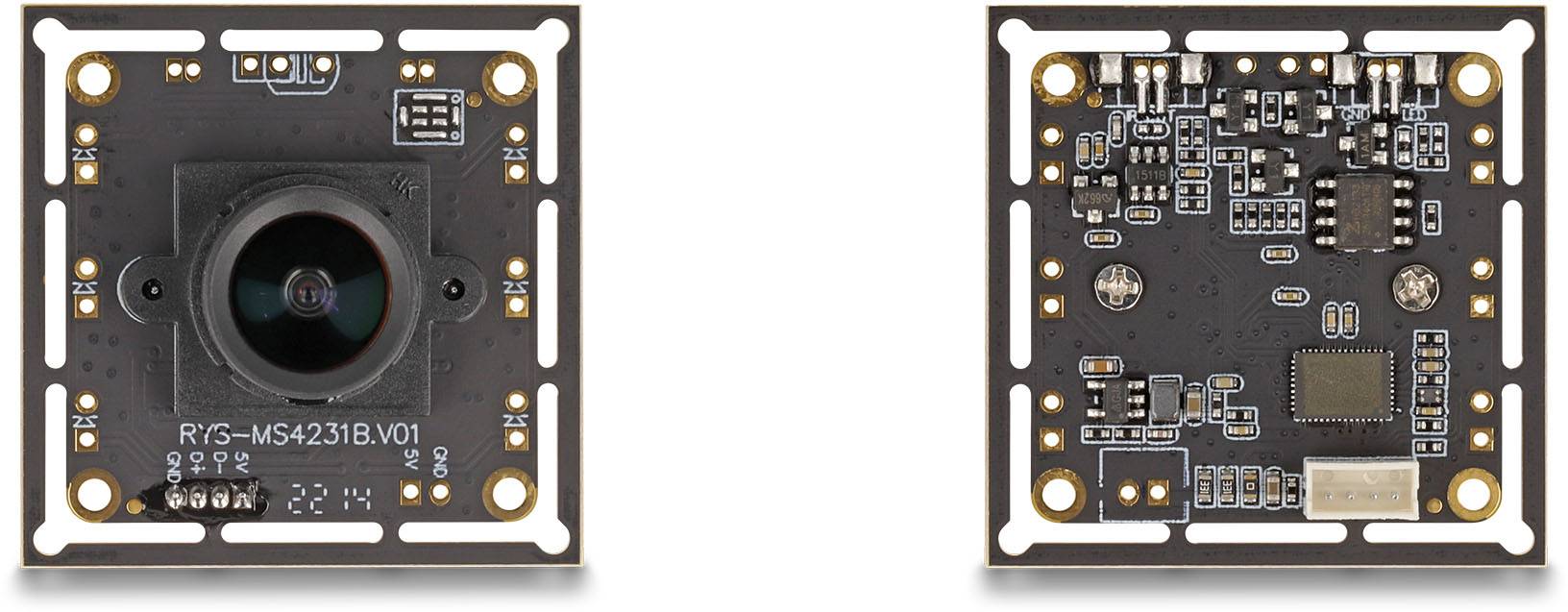

Delock USB 2.0 camera module with HDR 2.1 megapixel 94° V6 fixed focus
- 2.1 MP 1920 x 1080 pixels 30 fps
- Full HD
- Interface: USB 2.0
- Black
Technical specifications
- Interface: USB 2.0
- Sustainability Compliance: Yes
- Product type
CMOS colour camera unit
- Resolution
2.1 MP
- Video resolution
1920 x 1080 Pixel
- Frames per second
30
- Pic resolution
1920 x 1080 Pixel
- F-numbers
F/2.8
- Operating voltage
5 V DC
- Max. current consumption
100 mA
- Length
38.0 mm
- Width
38 mm
- Height
16.5 mm
- Weight
1000 g
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Type A
USB
- Type B
USB
- Depth
38 mm
- Cable use
C13/C14 appliances
- Connections
USB-C® plug
- Microphone
No
- Connection type
USB 2.0
- UKCA
yes
- Operating temperature (T-T)
-10 - 70 °C
- Built-in flash
no
- Signal-to-Noise Ratio (SNR)
41 dB
- Optical sensor size
25,4 / 2,7 mm (1 / 2.7")
- Quantity
1
- Fixed focus
yes
- Operating voltage
5 V
- Megapixel (approx.)
2.1 MP
- Operating relative humidity (H-H)
0 - 80 %
- Maximum video resolution
1920 x 1080 p
- Maximum frame rate
30 fps
Documents & Downloads
Datasheet
Datasheet 3382471 Delock 12064 12064 CMOS colour camera unit
User & Safety Instructions
User & Safety Instructions 3382471 Delock 12064 12064 CMOS colour camera unit
Description
This Delock USB 2.0 camera module offers high resolution with low power consumption in a very compact design. It is Ideal suitable for installation in industrial components such as IPCs, embedded systems, sensors and in equipment manufacturing. The use of a photosensitive sensor with reverse exposure (BSI) extends the range of application of this module.
HDR – High dynamic range
Allows you to increase the total dynamic range to provide more detailed images in scenes with bright and dark areas.
This text is machine translated.
HDR – High dynamic range
Allows you to increase the total dynamic range to provide more detailed images in scenes with bright and dark areas.
This text is machine translated.
