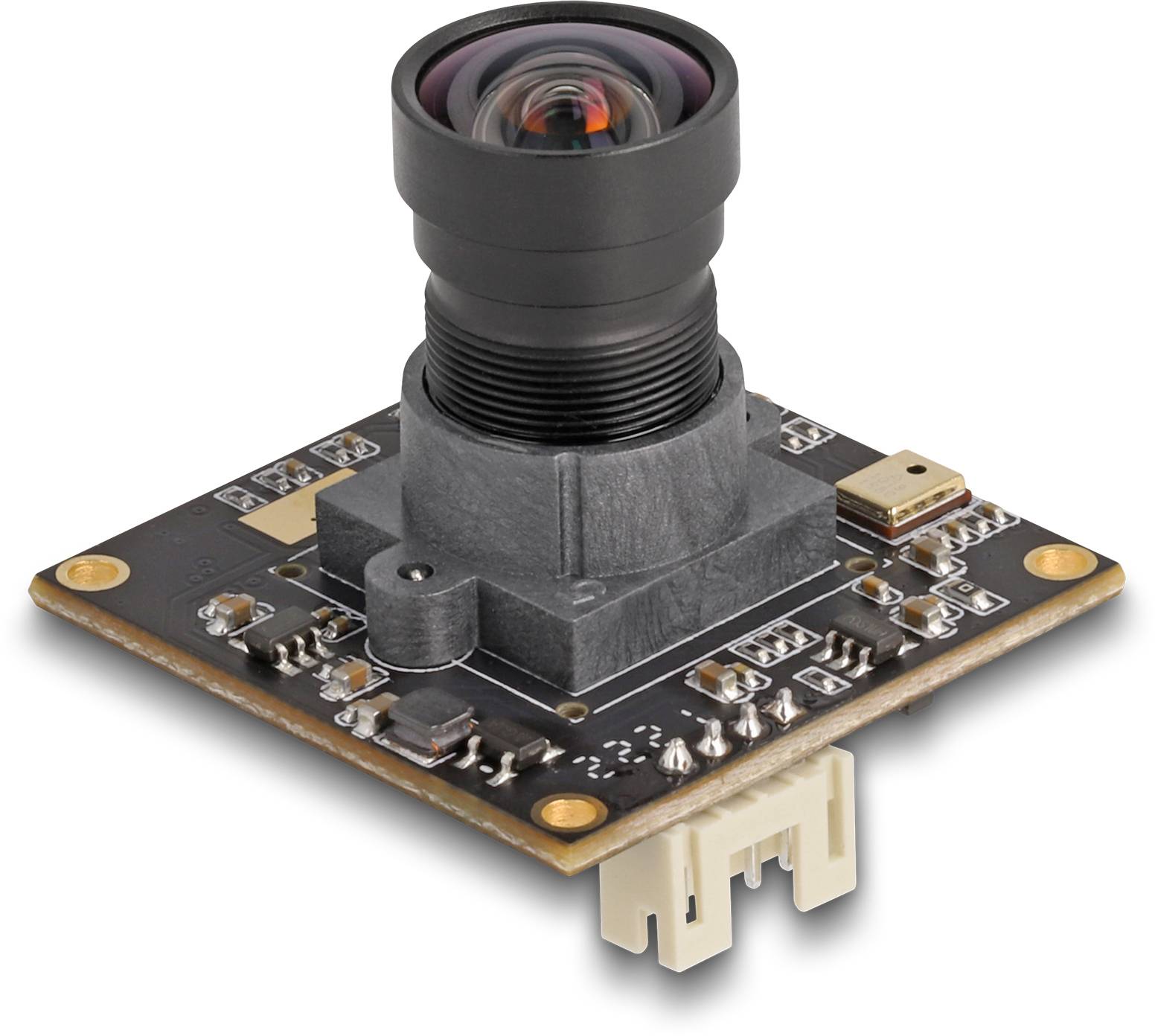

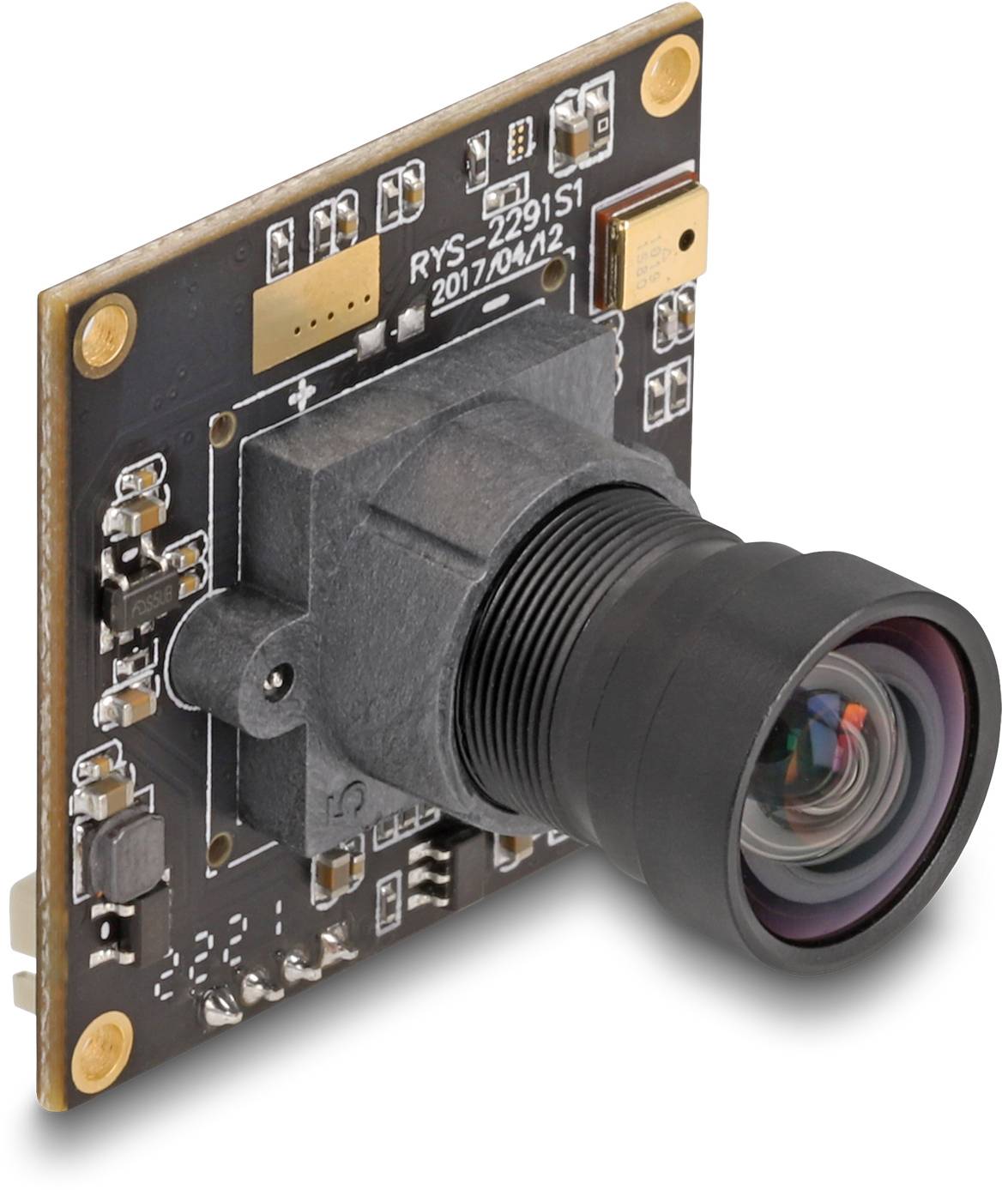

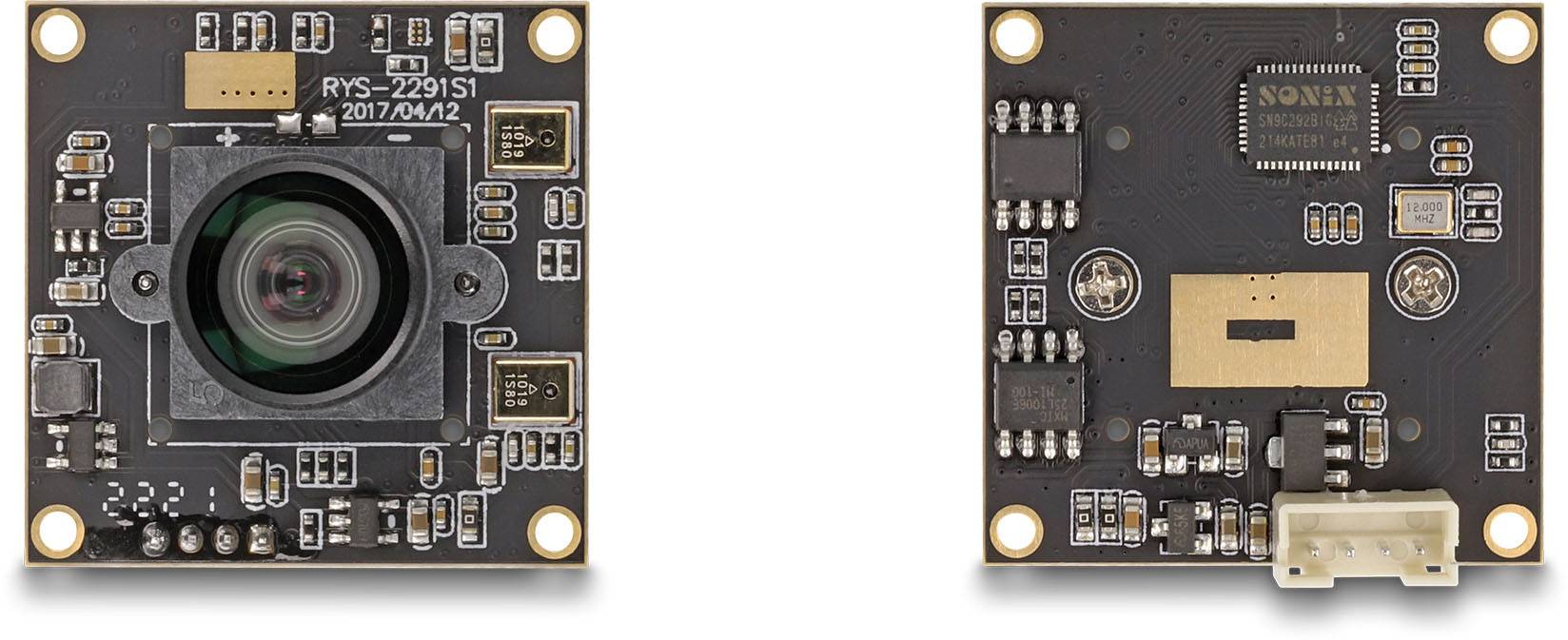

Delock 12074 12074 CMOS colour camera unit Built-in microphone
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock USB 2.0 camera module with WDR 2.1 Megapixel IMX291LQR-C Sony® Starvis 81° V7 fixed focus
- 2.1 MP 1920 x 1080 pixels 30 fps
- Full HD
- Interface: USB 2.0
- Black
Technical specifications
- Interface: USB 2.0
- Sustainability Compliance: Yes
- Product type
CMOS colour camera unit
- Resolution
2.1 MP
- Video resolution
1920 x 1080 Pixel
- Frames per second
30
- Pic resolution
1920 x 1080 Pixel
- F-numbers
F/2.7
- Operating voltage
5 V DC
- Max. current consumption
100 mA
- Features
Built-in microphone
- Length
32.0 mm
- Width
32 mm
- Height
22.3 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
32 mm
- Cable use
C13/C14 appliances
- Microphone
No
- UKCA
yes
- Operating temperature (T-T)
20 - 70 °C
- Built-in flash
no
- Signal-to-Noise Ratio (SNR)
29.4 dB
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Quantity
1
- Fixed focus
yes
- Operating voltage
5 V
- Megapixel (approx.)
2.1 MP
- Operating relative humidity (H-H)
0 - 80 %
- Maximum video resolution
1920 x 1080 p
- Maximum frame rate
30 fps
Documents & Downloads
Datasheet
Datasheet 3382475 Delock 12074 12074 CMOS colour camera unit Built-in microphone
User & Safety Instructions
User & Safety Instructions 3382475 Delock 12074 12074 CMOS colour camera unit Built-in microphone
Description
This Delock USB 2.0 camera module offers high resolution with low power consumption in a very compact design. It is Ideal suitable for installation in industrial components such as IPCs, embedded systems, sensors and in equipment manufacturing. The use of a photosensitive sensor with reverse exposure (BSI) extends the range of application of this module.
WDR - Wide Dynamic Range
Allows adjustment of the brightest and darkest areas of the image to improve the quality of the still image.
