Delock 12409 12409 LTE antenna 4 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 12409 network-antenna Omni-directional antenna RP-SMA 4 dBi
- Omnidirectional antenna RP-SMA
- 4 dBi
- 0,698 - 0,791 / 0,824 - 0.96 / 1.71 - 2.17 / 2.4 - 2.5 / 5.15 - 5,875 GHz
- 50 Ohm
Technical specifications
- Frequency range 0,698 - 0,791 / 0,824 - 0.96 / 1.71 - 2.17 / 2.4 - 2.5 / 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
4 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
RPSMA plug
- Weight
0
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
39.8 mm
- Height
13.5 mm
- Length
156.16 mm
- Version
Adapter
- Factory colour
Black
- Depth
156.2 mm
- Cable use
Networks
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380687 Delock 12409 12409 LTE antenna 4 dBi 2.4 GHz
Description
This LTE antenna is used to receive various LTE indoor bands. It is completely compatible with Bluetooth, UMTS, GSM, WLAN dual band and ZigBee
This text is machine translated.
This text is machine translated.
Features

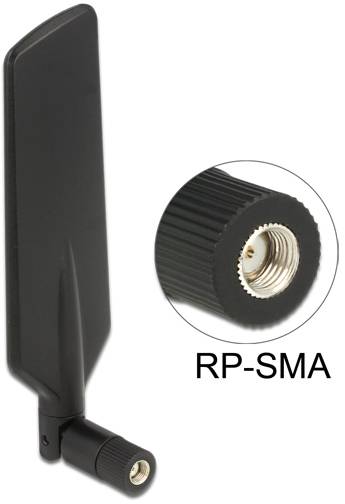

- Connection 1 x RP-SMA plug
- Bluetooth, GSM, UMTS, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, Z-Wave, DECT,
- LoRa 868 / 915 MHz
- Frequency range:
- 698 - 791 MHz
- 824 - 960 MHz
- 1710 - 2170 MHz
- 2400 - 2500 MHz
- 2570 - 2700 MHz
- 5150 - 5875 MHz
- Antenna gain 1 - 4 dBi
- Impedance: 50 ohm

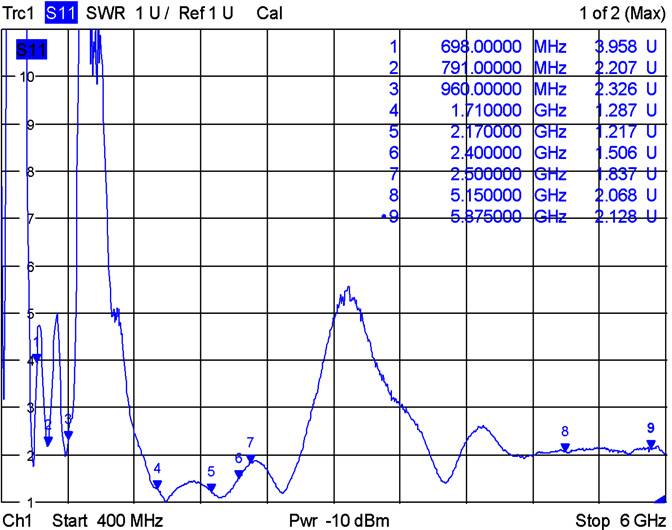

- VSWR: 2.5 - 5.0
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material

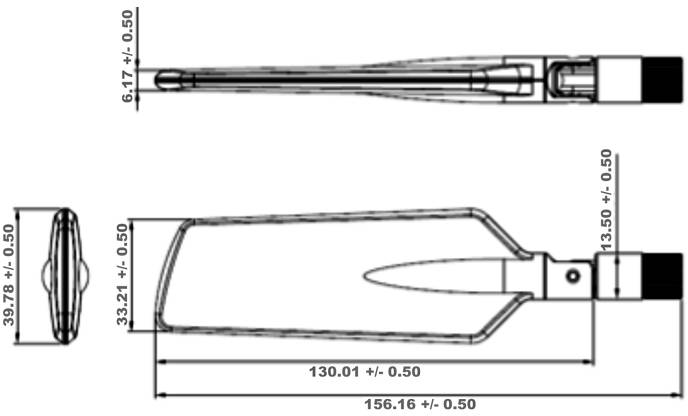

- Dim. (LxWxH): Approx. 156.16 x 39.78 x 6.17 mm
System requirements
- Device with a free RP-SMA connection
