Delock 12419 Internal antenna GSM
EAN:
Part number:
Item no:

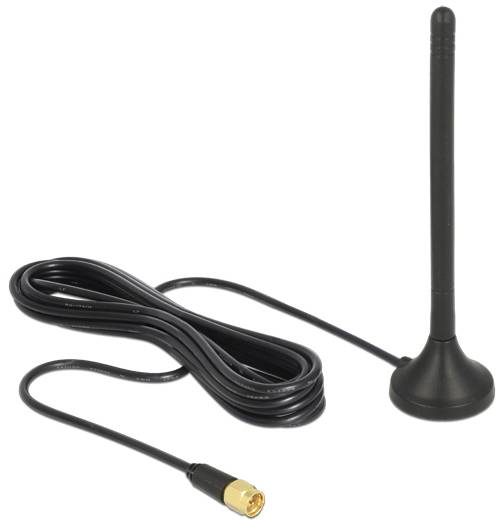

GSM / UMTS / LTE antenna SMA plug 2.5 dBi omnidirectional antenna with magnetic base and connector cable RG-174 3 m outdoor black
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
2.5 dBi
- Antenna type
Internal antenna
- Suitable for mains
GSM
- Width
3 cm
- Height
117.63 cm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.10
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Antenna gain level (max)
2.5 dBi
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381156 Delock 12419 Internal antenna GSM
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is fully compatible with ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 824 - 960 MHz
- 1710 - 2170 MHz
- ZigBee 868 MHz / 915 MHz, DECT, Z Wave, LoRa 868 MHz / 915 MHz
- Antenna gain 2.5 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 3 m.
- Antenna length incl. magnetic base: Approx. 117.63 mm
- Diameter of magnetic base: Approx. 30.0 mm
System requirements
- Device with a free SMA socket
