Delock 12425 12425 LTE antenna 5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12425 Network-Antenna Omni-directional Antenna SMA 5 dBi
- Omni-directional antenna SMA Black
- 5 dBi
- 0,700 - 0,960 / 1,710 - 2,700 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 0,700 - 0,960 / 1,710 - 2,700 GHz
- Impedance: 50 ohm
- Cable type: RG-58
- Product type
LTE antenna
- Gain
5 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Weight
330 g
- No. of ports
1
- Mounting type
Magnet
- Polarisation
Vertical
- Width
86 mm
- Height
449 mm
- Length
250 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
- Depth
86 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Quantity per pack
1 Stück(e)
- Maximum cable loss with connectors
0.6 dB
- Power handling
50 W
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3381182 Delock 12425 12425 LTE antenna 5 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381182 Delock 12425 12425 LTE antenna 5 dBi 2.4 GHz
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 700 - 960 MHz
- 1710 - 2700 MHz
- GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MH/z /
- 915 MHz
- Antenna gain 5 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Transmitted power 50 W
- Operating temperature: -30 °C ~ 70 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.6 dB @ 1 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3 m.

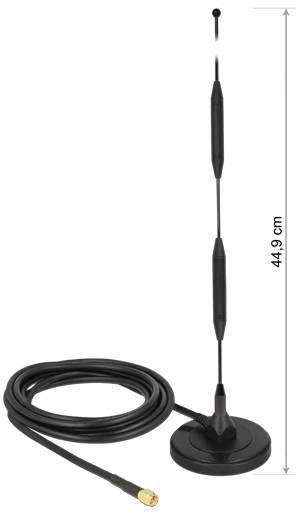

- Antenna length incl. magnetic base: Approx. 44.9 cm
- Diameter of magnetic base: Approx. 86.0 mm
System requirements
- Device with a free SMA socket
