Delock 12433 12433 LTE antenna 6.5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 12433 Network-Antenna Omni-directional Antenna SMA 6.5 dBi
- Omni-directional antenna SMA white
- 6.5 dBi
- 50 Ohm
- Vertical polarization
Technical specifications
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LTE antenna
- Gain
6.5 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
120 g
- No. of ports
1
- Polarisation
Vertical
- Width
210 mm
- Height
63 mm
- Length
250 cm
- Cable design
Round
- Version
Cable
- Factory colour
White
- Depth
295 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-40 - 70 °C
- Diameter
2.7 cm

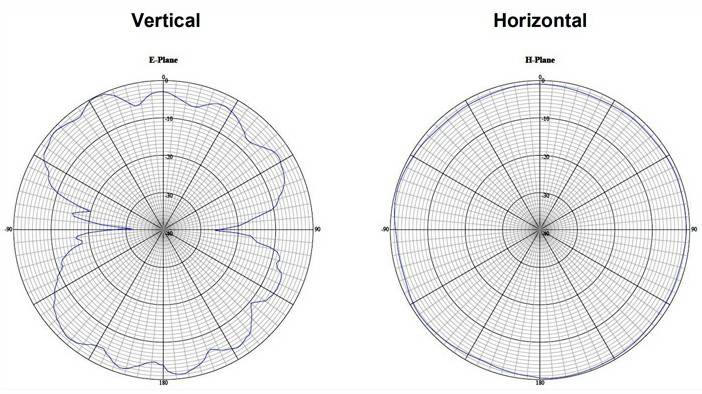

- Horizontal beam width
360°
- Vertical beam width
60°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380778 Delock 12433 12433 LTE antenna 6.5 dBi 2.4 GHz
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 698 - 960 MHz
- 1710 - 2700 MHz
- ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
- Antenna gain 2 - 6.5 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Vertical
- HBW horizontal opening angle: 360°
- VBW vertical aperture angle: 60°
- Transmitted power 100 W max.
- Antenna type: Rod antenna
- Operating temperature: -40 °C ~ 70 °C
- Housing material:GFK UV-protected
- Colour: white
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connections: Approx. 30 cm
- Antenna length: Approx. 28 cm
- Diameter:
- approx. 22.00 mm (max.)
- Approx. 9.00 mm (SMA)
System requirements
- Device with a free SMA socket
