Delock 12455 12455 LTE antenna 28 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

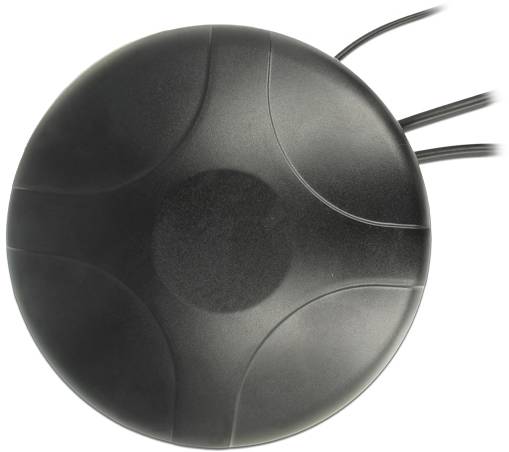

Delock 12455 network-antenna Omni-directional antenna SMA
- Omni-directional antenna SMA Black
- 50 Ohm
- Male
- 15 mA
Technical specifications
- Impedance: 50 ohm
- CABLE TYPE GPS, RG-174, LTE, RG-58 U, GSM UMTS, RG-58/U
- Product type
LTE antenna
- Gain
28 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
SMA plug
- Weight
1.2 kg
- No. of ports
3 x
- Mounting type
Screw fastening
- Polarisation
RHCP
- Height
65 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
IP67
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Diameter
14.4 cm
- Power consumption
15 mA
Documents & Downloads
Datasheet
Datasheet 3380909 Delock 12455 12455 LTE antenna 28 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3380909 Delock 12455 12455 LTE antenna 28 dBi 2.4 GHz
Description

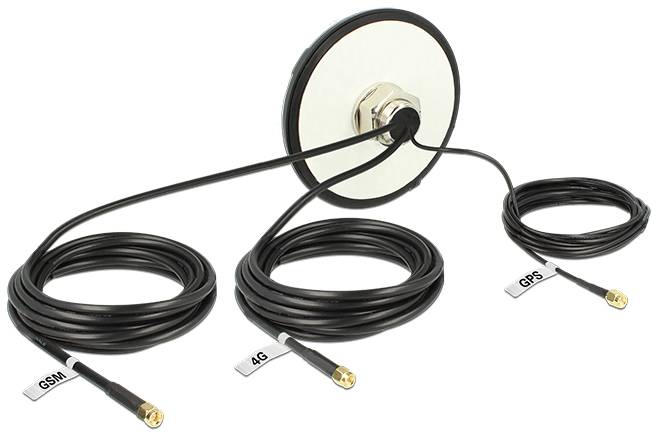

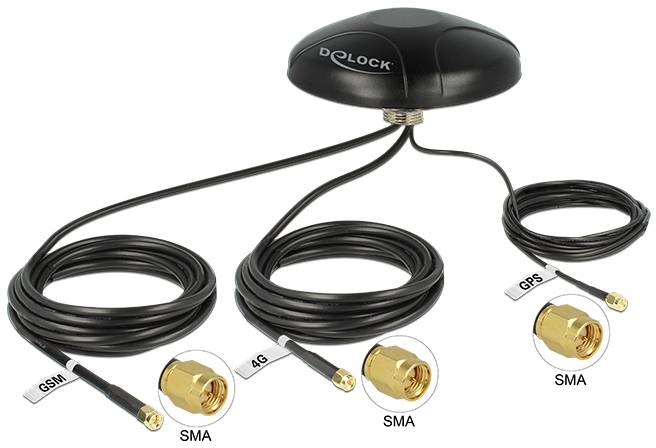

This Delock multi-band antenna has three physically separate send and receive units. Two PIFA antennas, each for LTE and GSM / UMTS, are responsible for sending and receiving in these areas. The GPS patch antenna receives the signals from the Global Navigation Satellite System GPS.
The multi-band antenna is perfectly suitable by its outdoor features for the rough daily routine in the fields of transportation, forestry and agriculture, construction as well as in the maritime area. It is waterproof, shock-resistant and can be used in an extended temperature range.
This text is machine translated.
The multi-band antenna is perfectly suitable by its outdoor features for the rough daily routine in the fields of transportation, forestry and agriculture, construction as well as in the maritime area. It is waterproof, shock-resistant and can be used in an extended temperature range.
This text is machine translated.
Features
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Connections: 3 x SMA connector less than/less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt LTE:less than/less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Frequency range:less than/less than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" 0.698 - 0.960 GHz less than/more than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" 1.710 - 2.700 GHz less than/more than/span
- Less than span style="font-size:11pt less than span style="font-size:12.0pt" GSM / UMTS / ZigBee / Z-Wave / WLAN 2.4 GHz / Bluetooth less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Antenna gain: 2 dBi less than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Impedance: 50 ohms less than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt VSWR: 2.5
- Polarisation: Linear smaller than/span than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: Coaxial
- Cable type: RG-58/Usmaller than/span
- Less than 4.95 mmless than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Cable attenuation: 0.6 dBi @ 1 GHz per meter less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt GSM UMTS:less than/less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Frequency range:less than/less than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" 0.824 - 0.960 GHz less than/more than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" 1.710 - 2.170 GHz less than/more than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt GSM / UMTS / Z-Wave
- Antenna gain: 2 dB smaller than/span than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt" Impedance: 50 Ohm
- VSWR: 2.5 smaller than/span than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Polarization: Less than/less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: Coaxless than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: RG-58/Uless than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Cable diameter: Approx. 4.95 mm
- Cable attenuation: 0.6 dBi @ 1 GHz per meter less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt GPS:less than/less than/span
- Less than/less than/less than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" GPS: L1, 1.57542 GHz less than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Antenna gain: 28 dBi less than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Impedance: 50 Ohm less than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt VSWR: 2.5 less than/less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Polarization: RHCPless than/less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: Coaxless than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: RG-174 less than/span less than/span
- Less than 2.7 mmless than/span
- Less than 1.5 dB @ 1.5 GHz per meter less than/less than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt Operating voltage: 2.2 - 5.0 V less than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Power consumption: 5 - 15 mAsmaller than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt LNA GPS:less than/less than/span
- Less than/less than/less than/span
- "alspan style="font-size:11pt less than span style="font-size:12.0pt" GPS: L1, 1.57542 GHz less than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Antenna gain: 28 dBi less than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt VSWR: 2.0less than/less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Impedance: 50 Ohm less than/span less than/span
- Less than alspan style= font-size:11pt less than span style= font-size:12.0pt Cable type: Coaxless than/span less than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt" Cable type: RG-174
- Cable diameter: Approx. 2.7 mm smaller than/span than/span
- Less than 1.5 dB @ 1.5 GHz per meter less than/less than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt Operating voltage: 2.2 - 5.0 V less than/span less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Power consumption: 5 - 15 mAsmaller than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt Screw-on mounting less than/less than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt Operating temperature: -40°C ~ 85°C less than/span
- Less than "alspan style= font-size:11pt less than span style= font-size:12.0pt Housing material: Less than/less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Color: Less than/less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Protection class: IP67less than/less than/span
- Less than an alspan style= font-size:11pt less than span style= font-size:12.0pt Cable color: Less than/less than/span
- Less than "Alspan style= font-size:11pt less than span style= font-size:12.0pt Cable length incl. connectors: Approx. 3 mless than/span less than/span

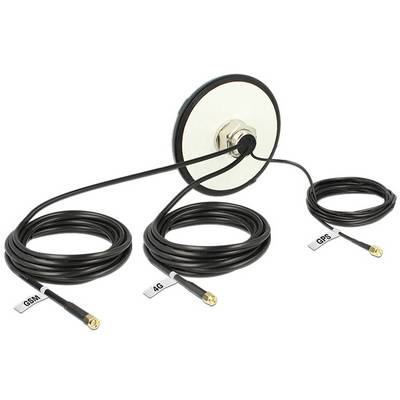

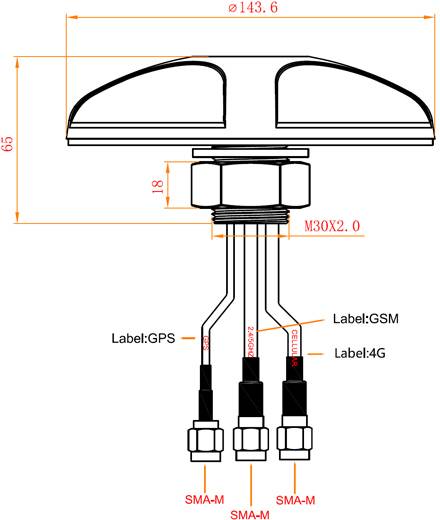

- Less than span style= font-size:12.0pt Dimensions (DxH): Approx. 143.6 x 65 mm
- Mounting hole diameter: 30 mm smaller than/span
System requirements
- Device with several free SMA connections
