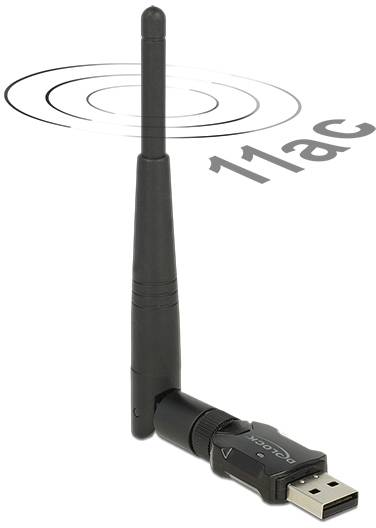

Delock 12462 12462 Wi-Fi antenna 3 dBi 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 12462 Network card WLAN 433 Mbit/s
Highlights & Details
- Cordless
- USB 2.0 WLAN
- 433 Mbit/s
- Wi-Fi
- Chip set: Realtek RTL8811
Technical specifications
- USB version 2.0
- Maximum data transfer rate of 433 Mbit/s.
- WLAN standards: Wi-Fi 5 (802.11ac),802.11g,Wi-Fi 4 (802.11n)
- Supports Windows operating systems: Windows 10 Education, Windows 10 Education x64, Windows 10 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 7 Home x64, Windows 7 Pro, Windows 7 Pro x64, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 10 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 10 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Wi-Fi speed 5 GHz
433 MBit/s
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
5 GHz
- Antenna socket
USB 2.0 connector A
- Weight
0.06
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
19 mm
- Height
12 mm
- Length
47 mm
- Wi-Fi speed 2.4 GHz
150 MBit/s
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Type A
USB
- Depth
47 mm
- Interfaces
Wi-Fi
- Wi-Fi standard
IEEE802.11ac
- No. of antennas
1 x
- Safety
WEP
WPA
WPA2
WPS
- Transfer type
Wireless
- Wi-Fi
Yes
- UKCA
yes
- Bandwidth (second)
5 GHz
- Bandwidth (first)
2.4 GHz
- Internal
no
- Gain
3 dBi
- Manual
yes
- Drivers included
yes
Documents & Downloads
Datasheet
Datasheet 3380810 Delock 12462 12462 Wi-Fi antenna 3 dBi 2.4 GHz, 5 GHz
User & Safety Instructions
User & Safety Instructions 3380810 Delock 12462 12462 Wi-Fi antenna 3 dBi 2.4 GHz, 5 GHz
Description

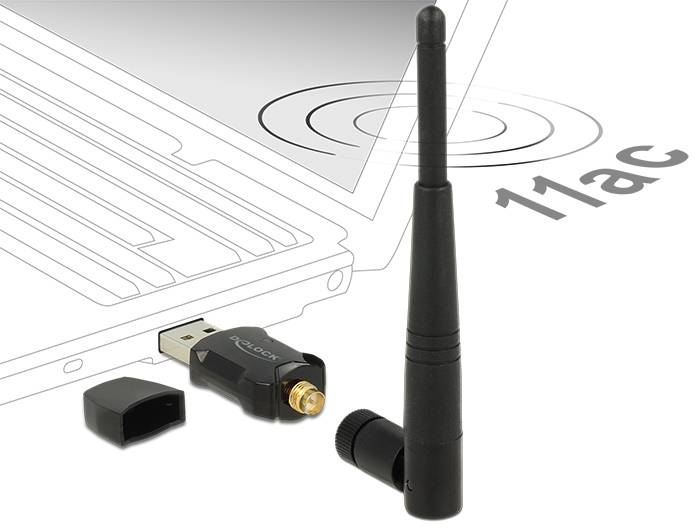

This wireless LAN USB stick can be connected to a computer, in order to be connected with a WLAN network. The WLAN stick can be connected to an access point (HotSpot) or WLAN-router in the 2.4 GHz and 5 GHz band. An ad hoc connection to a second computer is also possible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x USB 2.0 type A plug
- Chip set: Realtek RTL8811
- 1T1R mode with 433 Mbps @ 5 GHz and 150 Mbps @ 2.4 GHz
- Frequency range 2.4 GHz + 5 GHz Band
- Antenna gain 3 dBi
- Antenna type: External omni-directional removable antenna (RP-SMA socket) + PIFA
- Compatible with IEEE 802.11ac/a/n/b/g
- Encryption: WEP, WPA, WPA2
- Transmitted power (EIRP) 100 mW
- Supports DFS (Dynamic Frequency Selection)
- Supports WPS
- Dim. (LxWxH): Approx. 47 x 19 x 12 mm
System requirements
- Windows 8.1/10/11
PC or notebook with a free USB type A port
