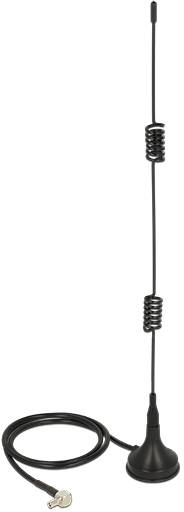

Delock 12480 12480 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12480 Network-Antenna Omni-directional Antenna TS-9 3 dBi
- Omni-directional antenna TS-9 black
- 3 dBi
- 0,698 - 2.7 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 0,698 - 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LTE antenna
- Gain
3 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
TS-9 plug
- Antenna socket
TS-9 plug
- Weight
0.071
- No. of ports
1
- Mounting type
Magnetic base
- Polarisation
Linear
Vertical
- Width
30 mm
- Height
265 mm
- Length
265 mm
- Cable design
Round
- Cable length
0.5 m
- Version
Cable
- Factory colour
Black
- Depth
30 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
- Maximum cable loss with connectors
1.5 dB
- Horizontal beam width
360°
Documents & Downloads
Datasheet
Datasheet 3380859 Delock 12480 12480 LTE antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3380859 Delock 12480 12480 LTE antenna 3 dBi 2.4 GHz
Description
The Delock LTE antenna allows multiple indoor LTE tapes to be used. It is completely compatible with Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x TS-9 plug 90°
- Frequency range:
- 690 - 960 MHz
- 1710 - 2700 MHz
- GSM, UMTS, LTE, ZIGBEE, DECT Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
- Antenna gain 2 - 3 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature: -10 °C ~ 55 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 50 cm
- Dimensions (LxD): Approx. 265 x 10 mm
- Diameter of magnetic base: Approx. 30.0 mm
System requirements
- Device with a free TS-9 port
