Delock 12491 12491 LTE antenna 6.5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12491 Network-Antenna Omni-directional antenna N-type 6.5 dBi
- Omni-directional antenna N-type black, white
- 6.5 dBi
- 0,698 - 0,960 / 1.71 - 2.7 GHz
- 50 Ohm
Technical specifications
- Frequency range 0,698 - 0,960 / 1.71 - 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
LTE antenna
- Gain
6.5 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
N socket
- Weight
0.20
- No. of ports
1
- Width
100 mm
- Height
270 mm
- Length
300 cm
- Cable design
Round
- Version
Cable
- Factory colour
Black
White
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 70 °C
- Quantity per pack
1 Stück(e)
- Maximum cable loss with connectors
1.5 dB
- Diameter
2.2 cm
Documents & Downloads
Datasheet
Datasheet 3381164 Delock 12491 12491 LTE antenna 6.5 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381164 Delock 12491 12491 LTE antenna 6.5 dBi 2.4 GHz
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Small aldiv connection: N sockets smaller than/div
- Smaller aldivvFrequency range:
- 698 - 960 MHz
- 1710 - 2700 MHz less than/div
- ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
- Small aldivAntenna gain 2.0 - 6.5 dBi
- Impedance: 50 ohm
- Transmission power: Max. 100 Wsmaller than/div
- Less than divVSWR: 2.0less than/div
- Less than -40°C ~ 70°C less than/div
- Small aldiv cable type: Coaxisless than/div
- Smaller than aldivcCable type: RG-174 less than/div
- Small aldivvCable length: Approx. 30 cmless than/div
- Smaller than div cable diameter:approx. 2.7 mmless than/div
- Smaller than div cable color: Black
- Cable attenuation: Approx. 1.5 dB @ 1.5 GHz per meter less than/div
- Small aldiv.Housing material:GFK, UV protectively smaller than/div

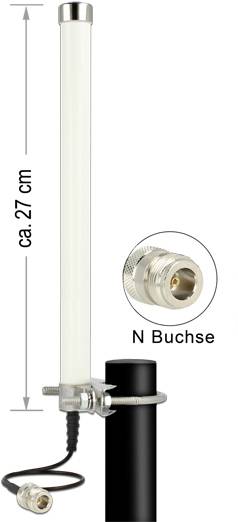

- Less than 27.0 cmless than/div
- Smaller than div diameter: Approx. 2.2 cmsmaller than/div
- Small aldiv diameter N bushing: Approx. 1.66 cmless than/div
System requirements
- Device with free N plug
