Delock 12504 Wall/pole mount antenna
EAN:
Part number:
Item no:
Delock Lora 868 MHz antenna N socket 8 dBi 147.4 cm omnidirectional rigid wall and mast mounting white outdoor
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Factory colour
White
- Gain
8 dBi
- Antenna type
Wall/pole mount antenna
- Width
2.6 cm
- Height
147.4 cm
- Cable design
Round
- Version
Cable
- Depth
147.4 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Weight
1.30
- UKCA
yes
- Antenna gain level (max)
8 dBi
- Impedance
50 Ohm
- Diameter
26 cm
- Power handling
100 W
- Horizontal beam width
360°
- Vertical beam width
36°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381239 Delock 12504 Wall/pole mount antenna
Description
This Delock antenna allows you to use the 868 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connector: N socket
- Antenna type: Collinear dipolar ray
- Frequency range 860 - 870 MHz
- Antenna gain 8 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- HBW horizontal opening angle: 360°
- VBW vertical aperture angle: 17°
- VSWR: ≤1.5
- Transmitted power 100 W max.
- Operating temperature: -40 °C ~ 60 °C
- Housing material:GFK UV-protected
- Length approx. 147.4 cm
- Diameter approx. 2.6 cm
- Weight:
- Antenna: Approx. 800 g

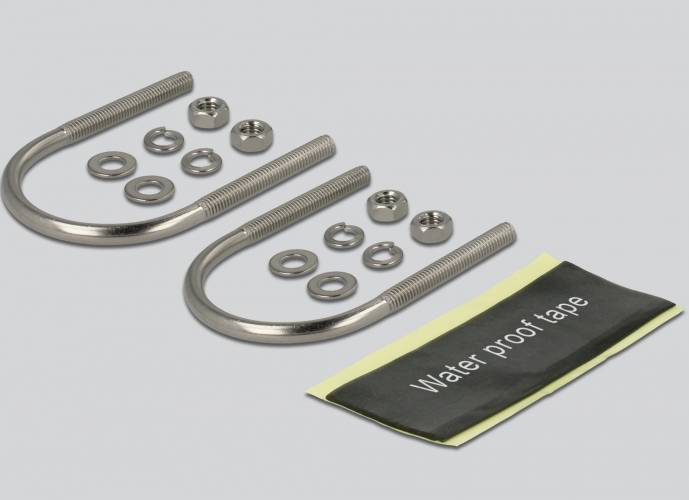

- Attachment material: Approx. 70 g
System requirements
- Device with an empty N connection
