Delock 12535 12535 Wi-Fi antenna 5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 12535 network card RF wireless
Highlights & Details
- Cordless
- USB 3.2 2nd Gen 1 (3.1 Gen 1) RF wireless
- Wi-Fi Dual band (2.4 GHz/5 GHz)
- Chip set: Realtek RTL8811
Technical specifications
- RF wireless interface
- USB version 3.2 Gen 1 (3.1 Gen 1)
- Wi-Fi band Dual (2.4 GHz/5 GHz)
- WLAN standards: 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
- Product type
Wi-Fi antenna
- Gain
5 dBi
- Wi-Fi speed 5 GHz
867 MBit/s
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
USB
- Weight
0.185
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Width
47 mm
- Height
205 mm
- Length
201 mm
- Wi-Fi speed 2.4 GHz
300 MBit/s
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Type A
USB
- Depth
12 mm
- Charging method (Power Delivery)
w/o USB Power Delivery
- Charging capacity (max.)
15 W
- Charging capacity (min.)
10 W
- No. of antennas
1 x
- Safety
WEP
WPA
WPA2
WPS
- Transfer type
Wireless
- Wi-Fi
Yes
- UKCA
yes
- Antenna length
20.1 cm
- Bandwidth (second)
5 GHz
- Bandwidth (first)
2.4 GHz
- Quantity per pack
1 Stück(e)
- Internal
no
- Gain
5 dBi
- Manual
yes
- Frequency range
0,3 - 0,867 GHz
- Drivers included
yes
Documents & Downloads
Datasheet
Datasheet 3381275 Delock 12535 12535 Wi-Fi antenna 5 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3381275 Delock 12535 12535 Wi-Fi antenna 5 dBi 2.4 GHz
Description

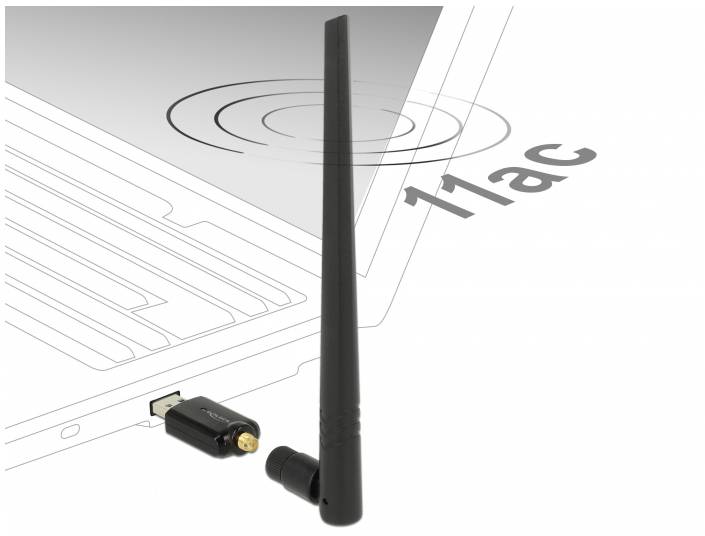

This wireless LAN USB stick can be connected to a computer, in order to be connected with a WLAN network. The WLAN stick can be connected to an access point (HotSpot) or WLAN-router in the 2.4 GHz and 5 GHz band. An ad hoc connection to a second computer is also possible.
This text is machine translated.
This text is machine translated.
Features
- Connection:
- 1 x USB 5 Gbps type A connector
- Chip set: Realtek RTL8812BU
- 2T2R mode with 867 Mbps @ 5 GHz and 300 Mbps @ 2.4 GHz
- Frequency range 2.4 2.400 GHz - 2.4835 GHz
- Transmitted power (EIRP) 2.4 GHz: Max. 100 mW
- Frequency range 5.150 GHz - 5.350 GHz, 5 5.470 5.725 GHz
- Transmitted power (EIRP) 5 GHz: Max. 200 mW
- Compatible with IEEE 802.11ac/a/n/b/g
- Antenna gain 5 dBi
- Antenna type: External omni-directional removable antenna (RP-SMA socket) + PIFA
- Length:
- Approx. 201 mm (with articulated joint)
- Approx. 177 mm (without swivel joint)
- Encryption: WEP, WPA, WPA2
- Supports DFS (Dynamic Frequency Selection)
- Supports WPS
- Dim. (LxWxH): Approx. 47.0 x 20.5 x 12.0 mm
System requirements
- Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port
