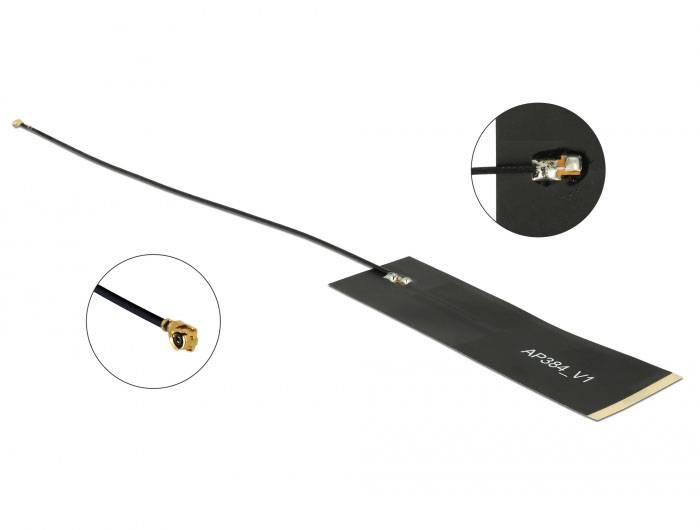

Delock 12540 12540 LoRa antenna 1.68 dBi
EAN:
Part number:
Item no:
Highlights & Details
Delock LoRa network antenna MHF 1.68 dBi
- MHF black
- 1.68 dBi
- 0,863 - 0,928 GHz
- 50 Ohm
- Linear polarization
Technical specifications
- 0,863 - 0,928 GHz
- Impedance: 50 ohm
- Cable type 1.13 mm
- Product type
LoRa antenna
- Gain
1.68 dBi
- Type
Flat antenna
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0.10
- No. of ports
1
- Mounting type
Adhesive
- Polarisation
Linear
Vertical
- Width
20 mm
- Length
15 cm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Factory colour
Black
- Depth
85 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382101 Delock 12540 12540 LoRa antenna 1.68 dBi
Description
This Delock antenna allows you to use the 863-928 MHz bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection:1 x I-PEX Inc., MHF® I connector
- Frequency range 863 - 928 MHz
- Lora, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM
- Antenna gain 1.68 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 2.5 dB @ 2400 MHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Length including connections (L): Approx. 15 cm
- Dim. (LxB): Approx. 85 x 20 mm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
