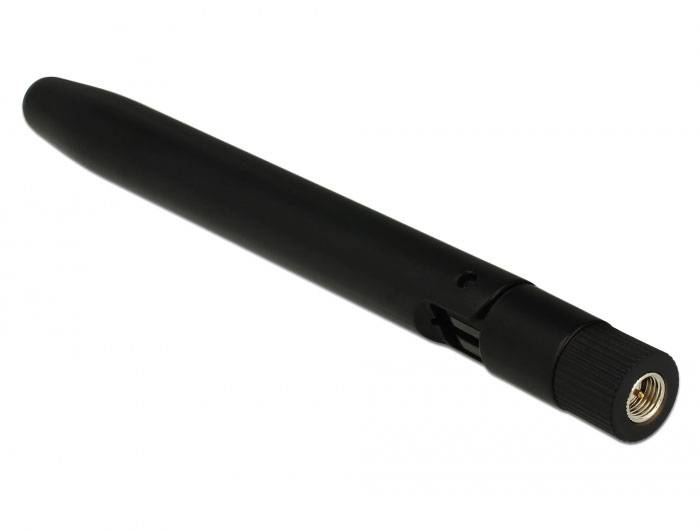

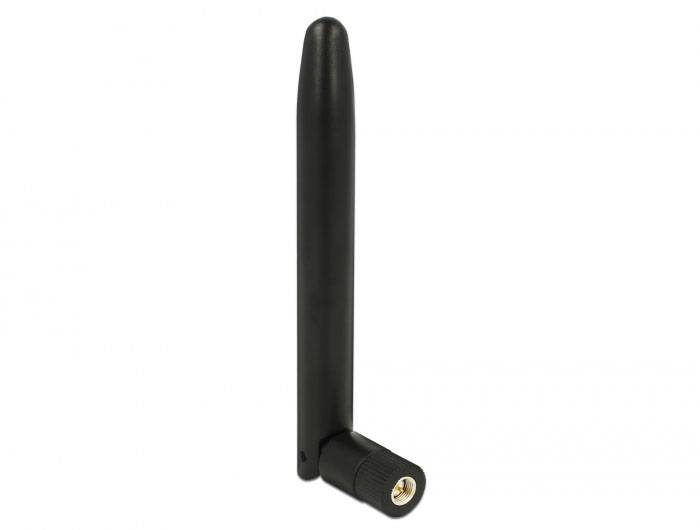

Delock 12542 12542 LoRa antenna 0.5 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock LORA Network-Antenna Omni-directional Antenna SMA 0.5 dBi
- Omni-directional antenna SMA Black
- 0.5 dBi
- 0,863 - 0,928 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 0,863 - 0,928 GHz
- Impedance: 50 ohm
- Product type
LoRa antenna
- Gain
0.5 dBi
- Type
Monopole antenna
- Used at
Indoors
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
13.5 mm
- Height
140 mm
- Length
140 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
13.5 mm
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3382479 Delock 12542 12542 LoRa antenna 0.5 dBi
User & Safety Instructions
User & Safety Instructions 3382479 Delock 12542 12542 LoRa antenna 0.5 dBi
Description
This Delock antenna allows you to use the 863-928 MHz bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 863 - 928 MHz
- Lora, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM
- Antenna gain 0.5 dBi
- Impedance: 50 ohm
- VSWR 3.5
- Polarisation: linear, vertical
- Mounting type: Screw mounting
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- Dimensions (LxD): Approx. 140 x 13.5 mm
System requirements
- Device with a free SMA socket
