Delock 12564 12564 LPWAN antenna 3 dBi
EAN:
Part number:
Item no:
Highlights & Details

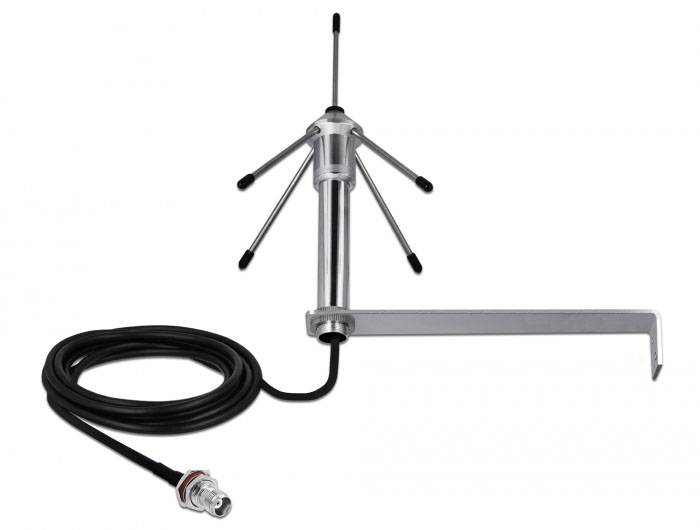

Delock 12564 Network-Antenna Omni-directional Antenna TNC 3 dBi
- Omni-directional antenna TNC silver
- 3 dBi
- 0,868 GHz
- 50 Ohm
- Vertical polarization
- Walls
Technical specifications
- Frequency band: 0,868 GHz
- Impedance: 50 ohm
- RG-58 C/U CABLE TYPE
- Product type
LPWAN antenna
- Gain
3 dBi
- Antenna socket
TNC socket
- Antenna socket
TNC socket
- Weight
420 g
- No. of ports
1
- Mounting type
Wall
- Polarisation
Vertical
- Width
100 mm
- Height
230 mm
- Length
250 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Silver
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-50 - 70 °C
- Diameter
1.91 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382102 Delock 12564 12564 LPWAN antenna 3 dBi
Description
This Delock antenna allows you to use the 868 MHz bandwidth in indoor and outdoor areas. LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
Features
- 1 x TNC socket
- Frequency range 868 MHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- Operating temperature: -50 °C ~ 70 °C
- Case material: Steel
- Colour silver
- Cable type: Coaxial
- RG-58 C/U CABLE TYPE
- Cable attenuation: 0.73 dB @ 1.0 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Minimum bend radius: Approx. 20 mm
- Cable length incl. connections: Approx. 3.0 m.
- Dimensions (LxD): Approx. 230.0 x 19.1 mm
System requirements
- Device with a free TNC connection
