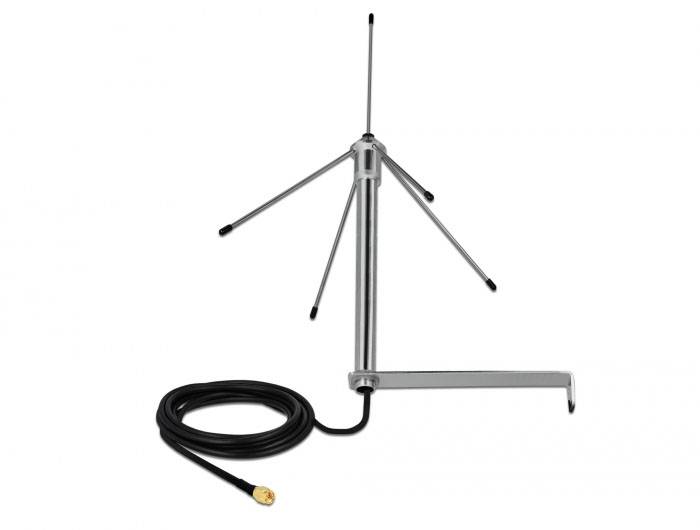

Delock 12565 Wall/pole mount antenna
EAN:
Part number:
Item no:
Highlights & Details
433 MHz Antenna SMA plug 3 dBi omnidirectional rigid with connection cable RG-58 C/U 3 m wall mounting outdoors silver
Technical specifications
- RG-58 C/U CABLE TYPE
- Product type
Mobile phone antenna
- Factory colour
Silver
- Gain
3 dBi
- Length
450 cm
- Antenna type
Wall/pole mount antenna
- Width
19.1 mm
- Height
450 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Weight
470 g
- UKCA
yes
- Operating temperature (T-T)
-50 - 70 °C
- Antenna gain level (max)
3 dBi
- Impedance
50 Ohm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381637 Delock 12565 Wall/pole mount antenna
Description
This Delock antenna allows you to use the 433 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 433 MHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- Operating temperature: -50 °C ~ 70 °C
- Case material: Steel
- Colour silver
- Cable type: Coaxial
- RG-58 C/U CABLE TYPE
- Cable attenuation: 0.73 dB @ 1.0 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Minimum bend radius: Approx. 20 mm
- Cable length incl. connections: Approx. 3.0 m.
- Dimensions (LxD): Approx. 450.0 x 19.1 mm
System requirements
- Device with a free SMA connection
