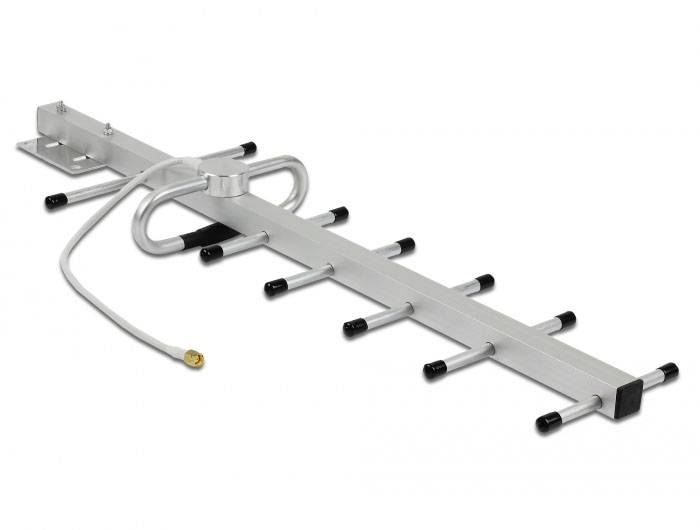

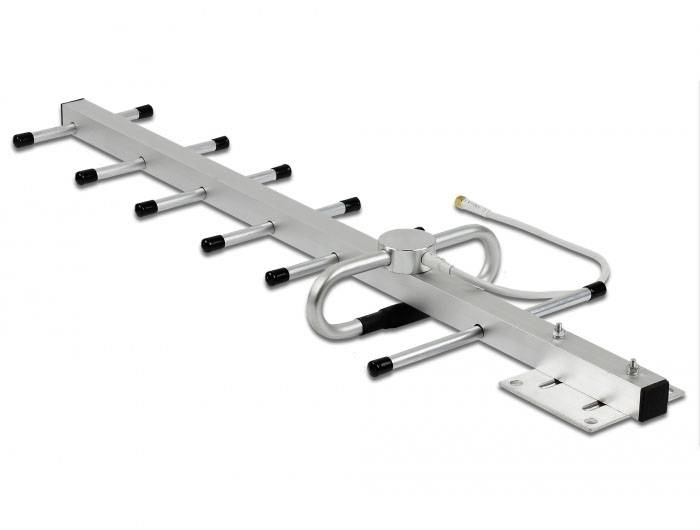

Delock 12569 Wall/pole mount antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LPWAN 806 - 896 MHz Yagi antenna SMA plug 10 dBi rigid directional wall- and mast mounting outdoors
Technical specifications
- RF wireless interface
- Product type
Mobile phone antenna
- Factory colour
Silver
- Gain
10 dBi
- Antenna type
Wall/pole mount antenna
- Width
100 mm
- Height
586 mm
- Cable design
Round
- Version
Cable
- Depth
150 mm
- Cable use
C13/C14 appliances
- Weight
500 g
- UKCA
yes
- Number of products included
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382103 Delock 12569 Wall/pole mount antenna
User & Safety Instructions
User & Safety Instructions 3382103 Delock 12569 Wall/pole mount antenna
Description
This Delock antenna allows you to use the 806 - 896 MHz bandwidth in indoor and outdoor areas.
LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 806 - 896 MHz
- LoRa, Sigfox, ZigBee, Z Wave
- Antenna gain 10 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical, horizontal
- HBW horizontal opening angle: 60°
- VBW vertical aperture angle: 50°
- Operating temperature: -40 °C ~ 60 °C
- Housing material: Aluminium alloy
- Colour silver
- Dimensions (L): Approx. 586 mm
- Weight: approx. 0.5 kg
- Maximum wind speed 60 m/s.
System requirements
- Device with a free SMA socket
