Delock 12582 12582 LTE antenna 7 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12582 Network-Antenna Omni-directional Antenna SMA 7 dBi
- Omni-directional antenna SMA Black
- 7 dBi
- 0,698 – 0.96; 1.71 – 2.17; 2.5 – 2.7 GHz
- 50 Ohm
- Linear, vertical Male
- Walls
Technical specifications
- 0,698 – 0.96; 1.71 – 2.17; 2.5 – 2.7 GHz
- Impedance: 50 ohm
- Cable type: RG-58
- Product type
LTE antenna
- Gain
7 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0.29
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
4.5 mm
- Height
56.3 mm
- Length
56.3 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
- Screen size diagonal (inches)
24 inch
IPX5
- Cable use
C13/C14 appliances
- Material (details)
Metal
- UKCA
yes
- Operating temperature (T-T)
-20 - 70 °C
- Quantity per pack
1 Stück(e)
- Diameter
4.5 mm
Documents & Downloads
Datasheet
Datasheet 3382485 Delock 12582 12582 LTE antenna 7 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382485 Delock 12582 12582 LTE antenna 7 dBi 2.4 GHz
Description

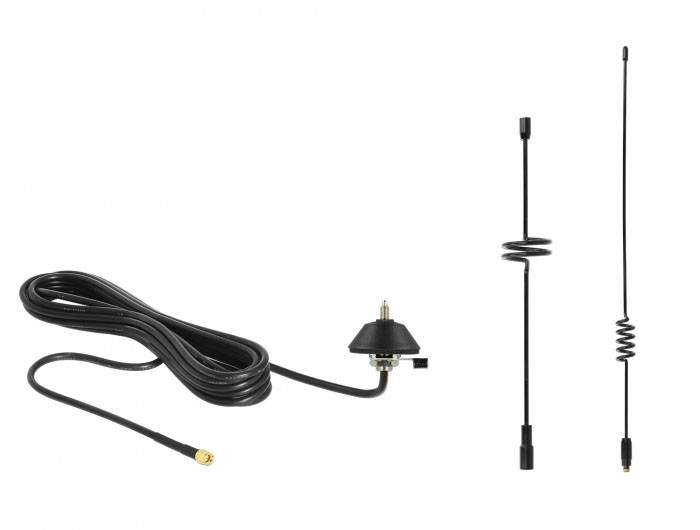

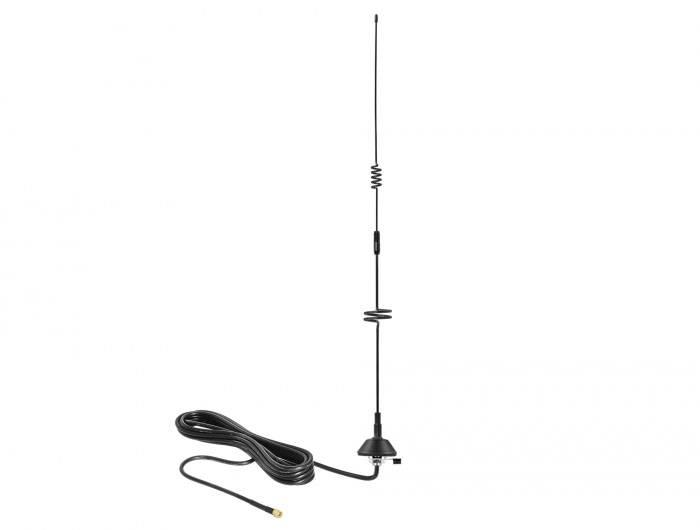

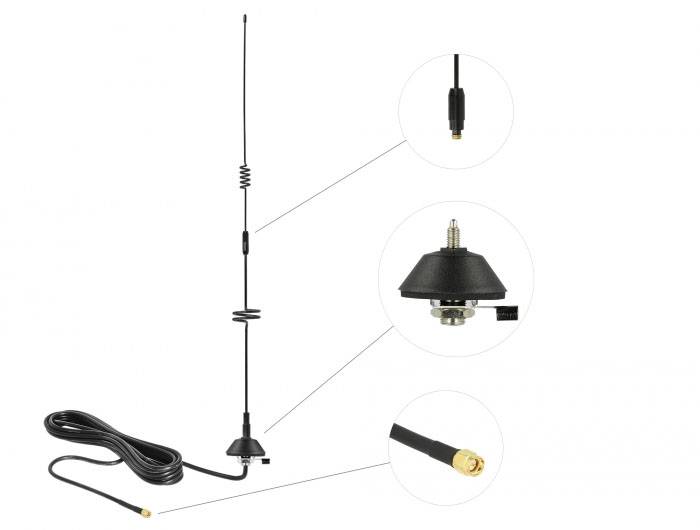

The Delock antenna allows various LTE bands to be used indoors and outdoors.
This text is machine translated.
This text is machine translated.
Features

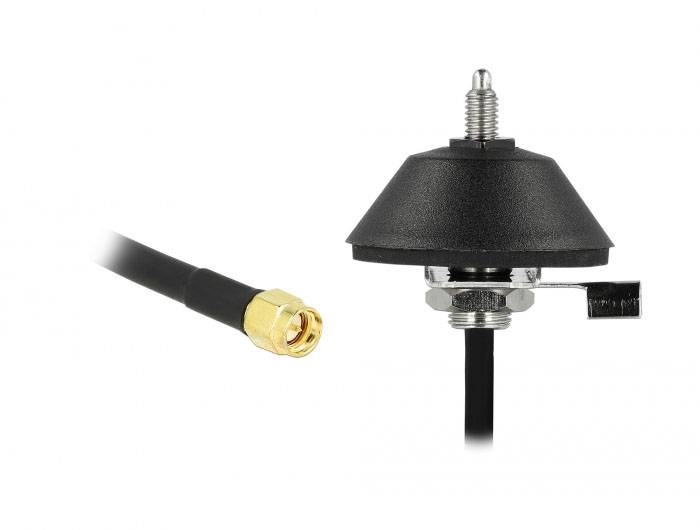

- Connection 1 x SMA plug
- Frequency range:
- 698 MHz - 960 MHz
- 1710 MHz - 2170 MHz
- 2500 MHz - 2700 MHz
- ZigBee, LoRa, DECT, Z Wave, NB-IoT, BLUETOOTH, GSM, UMTS, LTE, ISM, WLAN 2.4
- GHz
- Antenna gain 5 - 7 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- Case material: metal
- Mounting type: Screw mounting
- Thread type: Xx
- Thread length: Ca. Xx mm
- Colour, black
- Protection class: IPx5
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.6 dB @ 1 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3 m.

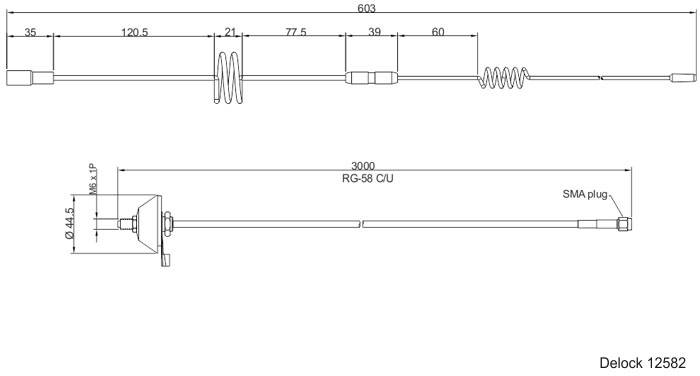

- Dimensions (LxD): Approx. 56.3 x 4.5 mm
System requirements
- Device with a free SMA connection
