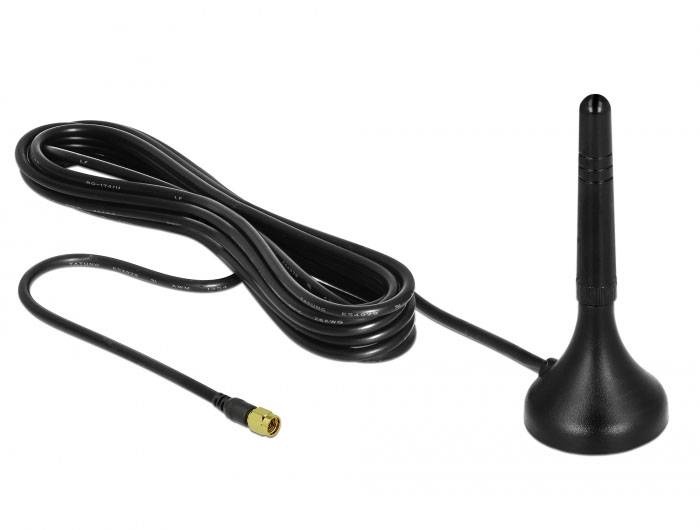

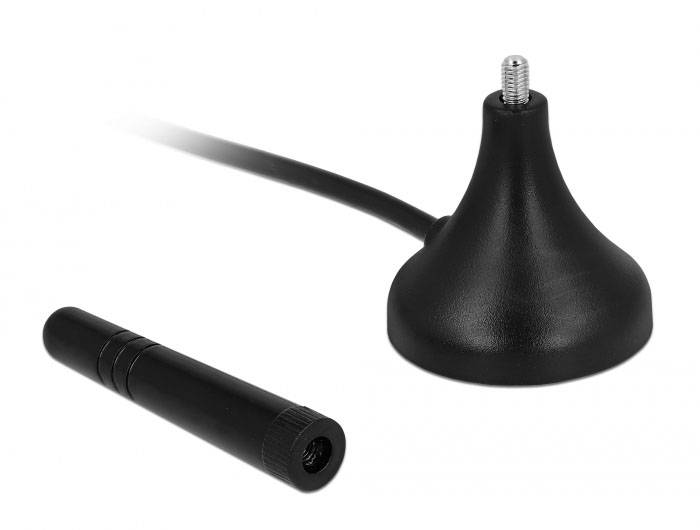

Delock 12583 12583 LTE antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12583 Network-Antenna Omni-directional Antenna SMA 2 dBi
- Omni-directional antenna SMA Black
- 2 dBi
- 0,698 – 0.96; 1.71 – 2.17; 2.5 – 2.7 GHz
- 50 Ohm
- Linear, vertical Male
- Walls
Technical specifications
- 0,698 – 0.96; 1.71 – 2.17; 2.5 – 2.7 GHz
- Impedance: 50 ohm
- CABLE TYPE RG-174 A/U
- Product type
LTE antenna
- Gain
2 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Weight
0.10
- No. of ports
1
- Mounting type
Wall
- Polarisation
Linear
Vertical
- Width
29.0 mm
- Height
72 mm
- Length
72.0 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
IPX5
- Cable use
C13/C14 appliances
- Material (details)
Metal
- UKCA
yes
- Operating temperature (T-T)
-20 - 70 °C
- Quantity per pack
1 Stück(e)
- Diameter
2.9 cm
Documents & Downloads
Datasheet
Datasheet 3382486 Delock 12583 12583 LTE antenna 2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382486 Delock 12583 12583 LTE antenna 2 dBi 2.4 GHz
Description
The Delock antenna allows various LTE bands to be used indoors and outdoors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- ZigBee, LoRa, DECT, Z Wave, NB-IoT, BLUETOOTH, GSM, UMTS, LTE, ISM, WLAN 2.4 GHz
- Antenna gain 1 - 2 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- Case material: metal
- Colour, black
- Protection class: IPx5
- Cable type: Coaxial
- CABLE TYPE RG-174 A/U
- Cable color: Black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 3 m.
- Dimensions (LxD): Approx. 72.0 x 29.0 mm
System requirements
- Device with a free SMA connection
