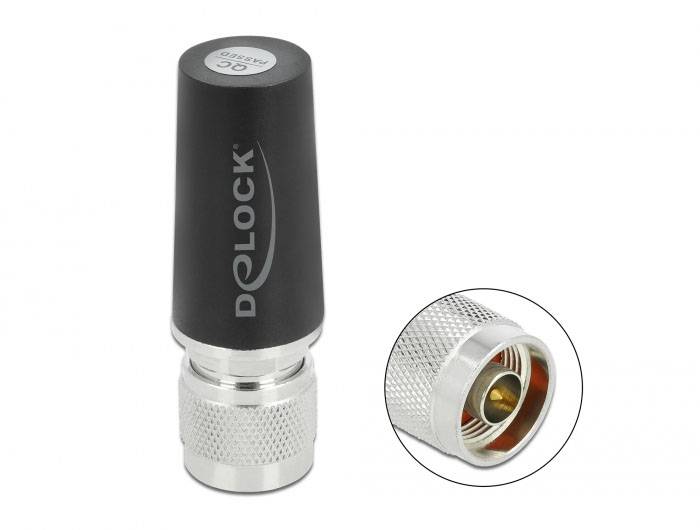

Delock 12604 12604 LTE antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock LTE antenna N plug 3 dBi omnidirectional rigid roof mounting outdoor
- N type black
- 3 dBi
- 698 – 960, 1710 – 2170, 2500 – 2700 GHz
- 50 Ohm
Technical specifications
- 698 - 960, 1710 - 2170, 2500 - 2700 GHz
- Impedance: 50 ohm
- Product type
LTE antenna
- Gain
3 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
N plug
- Antenna socket
N plug
- Weight
0.046
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Vertical
- Width
22 mm
- Height
22 mm
- Length
64 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3382490 Delock 12604 12604 LTE antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382490 Delock 12604 12604 LTE antenna 3 dBi 2.4 GHz
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x N plug
- Frequency range:
- 698 MHz - 960 MHz
- 1710 MHz - 2170 MHz
- 2500 MHz - 2700 MHz
- ZigBee, LoRa, DECT, Z Wave, NB-IoT, BLUETOOTH, GSM, UMTS, LTE, ISM, WLAN
- 2.4 GHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Vertical
- Mounting type: Screw mounting
- Mounting hole diameter 13.5 mm
- Operating temperature: -40 °C ~ 70 °C
- ABS casing material
- Protection class IP67
- Colour, black
- Dim. (LxWxH): Approx. 64 x 22 x 22 mm
System requirements
- Device with a free N socket
