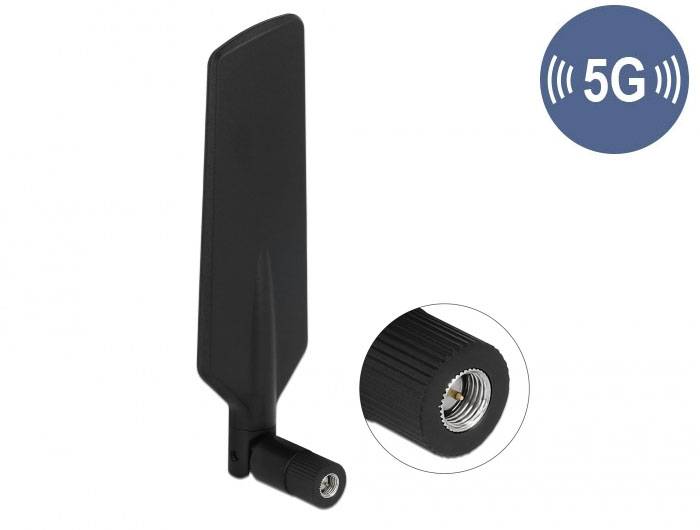

Delock 12606 Internal antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
5G LTE antenna SMA plug -1 - 3 dBi omnidirectional rotating device with swiveling joint black
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
156.16 mm
- Antenna type
Internal antenna
- Suitable for mains
5G
LTE
UMTS
- Width
33.21 mm
- Height
6.17 mm
- Version
Adapter
- Depth
6.17 mm
- Cable use
Networks
- Weight
0.05
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain level (max)
3 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381975 Delock 12606 Internal antenna 5G, LTE, UMTS
Description
This Delock 5G LTE antenna allows you to use various 5G LTE bands indoors. It is fully GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, and LoRa compatible. 5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features
- Connection 1 x SMA plug
- GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT,
- LoRa
- Frequency range:
- 698 - 791 MHz
- 824 - 960 MHz
- 1420 - 1520 MHz
- 1750 - 2170 MHz
- 2450 - 2650 MHz
- 3480 - 4200 MHz
- 4400 - 4900 MHz
- Antenna gain -1 - 3 dBi
- Impedance: 50 ohm
- VSWR: 3.0 - 5.0
- Polarisation: linear, vertical
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- Dim. (LxWxH): Approx. 156.16 x 33.21 x 6.17 mm
System requirements
- Device with a free SMA connection
