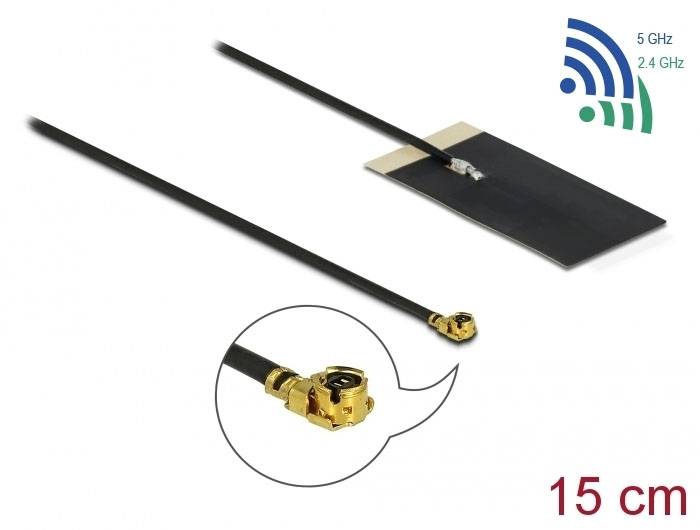

Delock 12611 12611 Wi-Fi antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock 12611 network antenna MHF 3 dBi
Highlights & Details
- MHF black
- 3 dBi
- 2.4 – 2.5; 5.15 – 5,875 GHz
- 50 Ohm
- Male
Technical specifications
- Frequency range 2.4 - 2.5; 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Cable type 1.13
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0.10
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Adhesive
- Width
18.6 mm
- Height
36.3 mm
- Length
36.33 mm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382496 Delock 12611 12611 Wi-Fi antenna 3 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382496 Delock 12611 12611 Wi-Fi antenna 3 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz + 5 GHz WLAN bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 2.7 - 3.0 dBi
- VSWR 2.5
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Cable diameter: Approx. 1.13 mm
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxB): Approx. 36.33 x 18.60 mm
- Cable length incl. connection: Approx. 15 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
