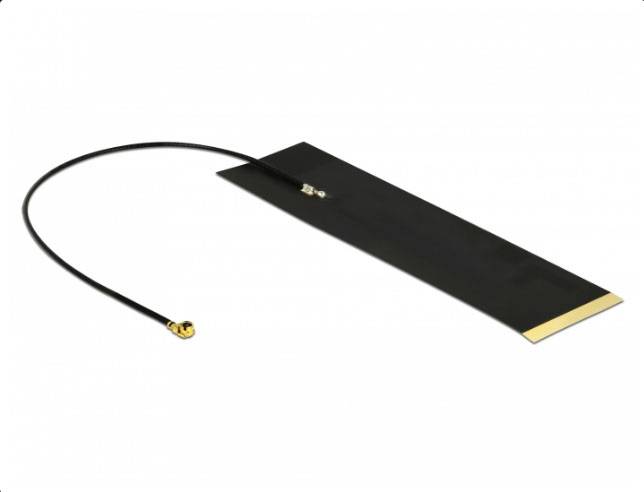

Delock 12612 12612 LTE antenna 3.9 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12612 network antenna MHF 3.9 dBi
- MHF black
- 3.9 dBi
- 0,698 - 0,791/0,824 - 0.96/1.71 - 2.17/2.3 - 2.7 GHz
- 50 Ohm
Technical specifications
- Frequency range 0,698 - 0,791/0,824 - 0.96/1.71 - 2.17/2.3 - 2.7 GHz
- Impedance: 50 ohm
- Cable type 1.13
- Product type
LTE antenna
- Gain
3.9 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Mounting type
Adhesive
- Width
25 mm
- Length
90.0 mm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Factory colour
Black
- Depth
90 mm
- Screen size diagonal (inches)
24 inch
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382497 Delock 12612 12612 LTE antenna 3.9 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382497 Delock 12612 12612 LTE antenna 3.9 dBi 2.4 GHz
Description
This Delock LTE antenna allows you to use various LTE tapes indoors. It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT,
- LoRa
- Frequency range:
- 698 MHz - 791 MHz
- 824 MHz - 960 MHz
- 1710 MHz - 2170 MHz
- 2300 MHz - 2700 MHz
- Antenna gain 1.9 - 3.9 dBi
- VSWR: 2.0 - 4.5
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxB): Approx. 90.0 x 25.0 mm
- Cable length incl. connection: Approx. 15 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
