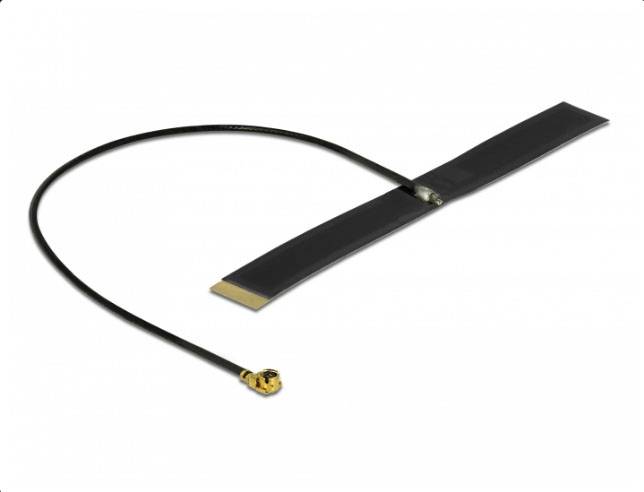

Delock 12614 12614 LPWAN antenna 0.38 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12614 network antenna MHF 0.38 dBi
- MHF black
- 0.38 dBi
- 0,863 - 0,928 GHz
- 50 Ohm
Technical specifications
- 0,863 - 0,928 GHz
- Impedance: 50 ohm
- Cable type 1.13
- Product type
LPWAN antenna
- Gain
0.38 dBi
- Type
Flat antenna
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0.003
- No. of ports
1
- Mounting type
Adhesive
- Width
10 mm
- Length
79.0 mm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Factory colour
Black
- Depth
79 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382105 Delock 12614 12614 LPWAN antenna 0.38 dBi
User & Safety Instructions
User & Safety Instructions 3382105 Delock 12614 12614 LPWAN antenna 0.38 dBi
Description
This Delock LPWAN antenna enables the use of the 863 - 928 MHz bandwidth in the interior. It is GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM and LoRa compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range 863 - 928 MHz
- GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa
- Antenna gain - 0.38 dBi
- VSWR 3.0
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxB): Approx. 79.0 x 10.0 mm
- Cable length incl. connection: Approx. 15 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
