Delock 12624 12624 Wi-Fi antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)

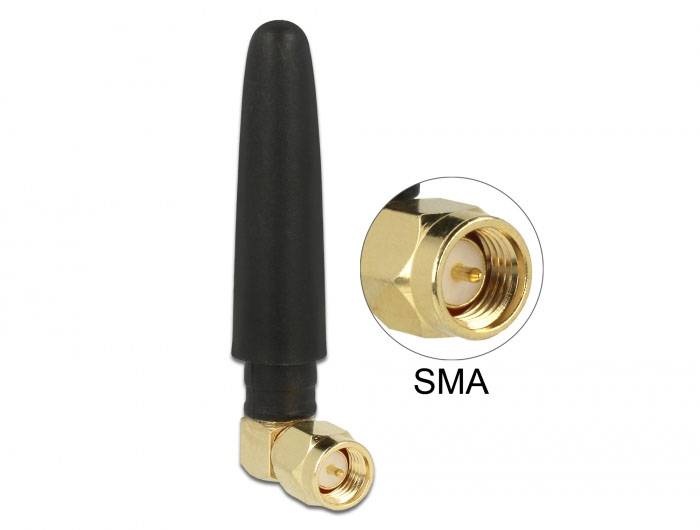

Delock WLAN 802.11 b/g/n Antenna SMA Plug 90° 2 dBi omnidirectional rigid from flexible material black
Highlights & Details
- Omni-directional antenna SMA Black
- 2 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
- Vertical polarization Male
Technical specifications
- Connection 1 x 90° SMA plugs
- Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
- Frequency range: 2.4 - 2.5 GHz.
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Polarisation: linear, vertical
- Operating temperature -40 °C ~ 85 °C
- Housing material: Rubber
- Product type
Wi-Fi antenna
- Gain
2 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
SMA plug
- Weight
0.007
- No. of ports
1
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Length
50 mm
- Version
Adapter
- Factory colour
Black
- Cable use
Networks
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382500 Delock 12624 12624 Wi-Fi antenna 2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382500 Delock 12624 12624 Wi-Fi antenna 2 dBi 2.4 GHz
Description
This Delock antenna enables the use of the 2.4 GHz band in the interior. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz compatible.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Antenna
System requirements
- Device with a free SMA socket
