Delock 12632 12632 Wi-Fi antenna 8 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)

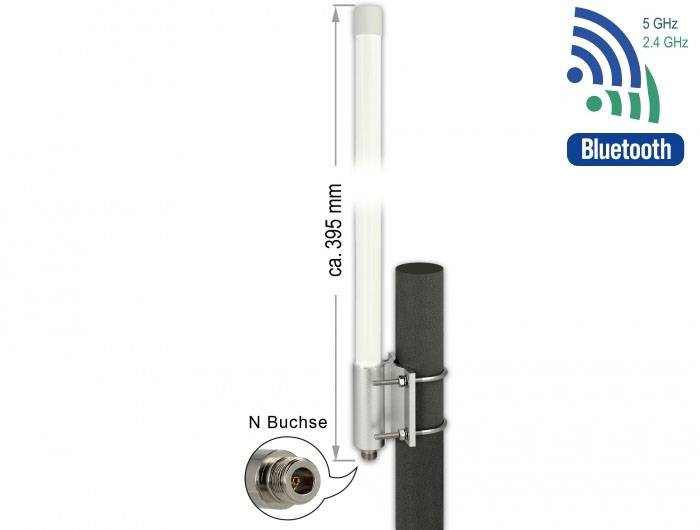

Delock Dualband WLAN 802.11 ac/ax/a/b/g/n Antenna N socket 6.2 - 8.0 dBi 39.5 cm omni directionally rigid Wall and tower mounting outdoors white
Highlights & Details
- Omni-directional antenna N-type white
- 8 dBi
- 2400 - 5875 GHz
- 50 Ohm
- Vertical polarization Female
- Rod
Technical specifications
- 2400 - 5875 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
8 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
N socket
- Antenna socket
N socket
- Weight
297 g
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Polarisation
Linear
Vertical
- Width
27 mm
- Height
395 mm
- Length
395 mm
- Cable design
Round
- Version
Cable
- Factory colour
White
- Cable use
C13/C14 appliances
- Material (details)
Glass Fibre Reinforced Plastic (GFRP)
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Quantity per pack
1 Stück(e)
- Gain
6,2 / 8 dBi
- Diameter
2.6 mm
- Power handling
100 W
- Horizontal beam width
360°
- Vertical beam width
17°

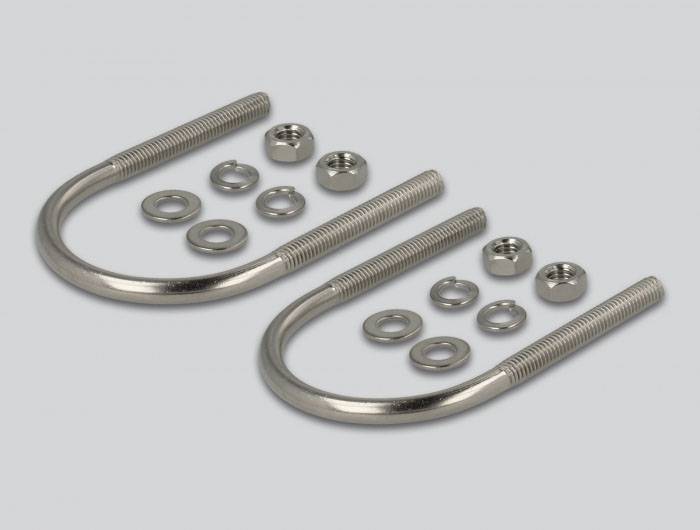

- Mounting kit
yes
Documents & Downloads
Datasheet
Datasheet 3382097 Delock 12632 12632 Wi-Fi antenna 8 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382097 Delock 12632 12632 Wi-Fi antenna 8 dBi 2.4 GHz
Description
This waterproof WLAN antenna from Delock enables the use of different WLAN bands outdoors.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket, waterproof
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5875 MHz
- Antenna gain 6.2 - 8 dBi
- Impedance: 50 ohm
- VSWR: 3.0 - 5.0
- Polarisation: linear, vertical
- Operating temperature -40 °C ~ 85 °C
- Housing material:GFK
- Length approx. 395 mm
- Diameter approx. 27 mm
- Weight approx. 297 g
System requirements
- Device with an empty N connection
