Delock 12634 Internal antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)

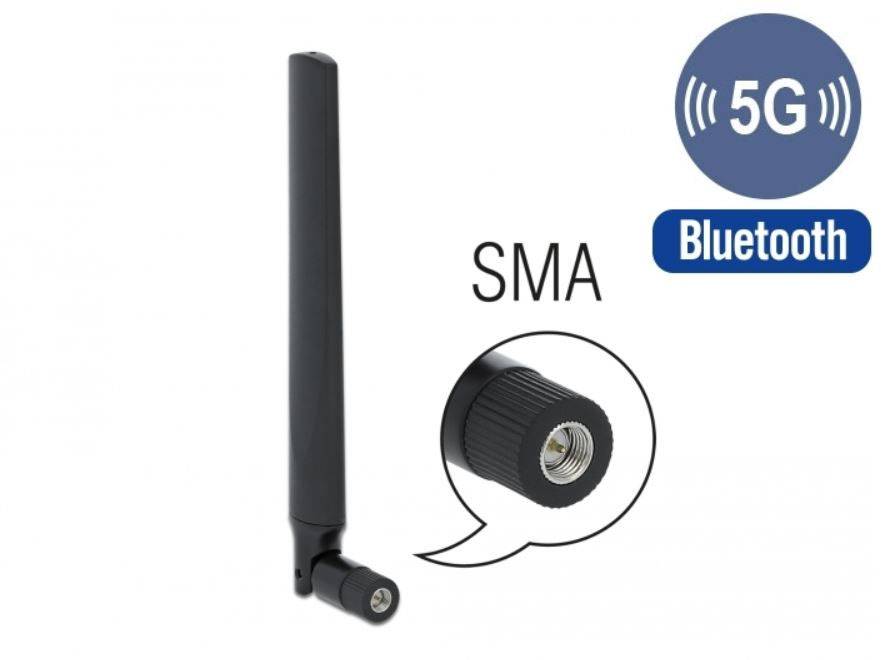

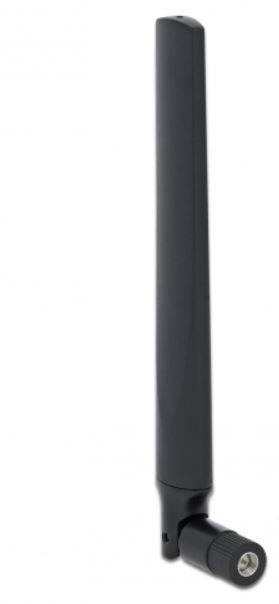

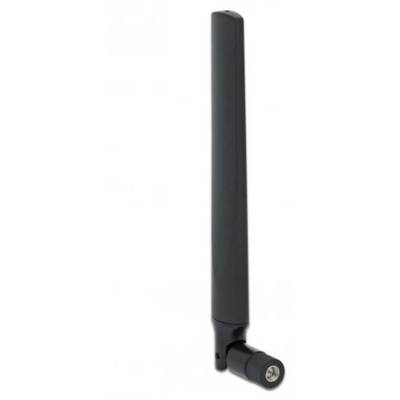

5G LTE antenna SMA plug -3.3 - 1.3 dBi omnidirectional antenna with tip joint black
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
183.06 mm
- Antenna type
Internal antenna
- Suitable for mains
5G
LTE
UMTS
- Width
21.5 mm
- Height
13.50 mm
- Version
Adapter
- Depth
13.5 mm
- Cable use
Networks
- Weight
0.10
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain level (max)
1.3 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Maximum outdoor range
617 - 798 MHz
803 - 960 MHz
1452 - 1496 MHz
1710 - 2270 MHz
2300 - 2690 MHz
3300 - 3800 MHz
4200 - 5000 MHz
Documents & Downloads
Datasheet
Datasheet 3381978 Delock 12634 Internal antenna 5G, LTE, UMTS
User & Safety Instructions
User & Safety Instructions 3381978 Delock 12634 Internal antenna 5G, LTE, UMTS
Description
This Delock 5G LTE antenna allows you to use various 5G LTE bands indoors. It is fully GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, and LoRa compatible.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features
- Connection 1 x SMA plug
- GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
- Frequency range:
- 617 - 798 MHz
- 803 - 960 MHz
- 1452 - 1496 MHz
- 1710 - 2270 MHz
- 2300 - 2690 MHz
- 3300 - 3800 MHz
- 4200 - 5000 MHz
- Antenna gain -3.3 - 1.3 dBi
- Impedance: 50 ohm
- VSWR: 3.0 - 6.0
- Polarisation: linear, vertical
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- Dim. (LxWxH): Approx. 183.06 x 21.50 x 13.50 mm
System requirements
- Device with a free SMA connection
