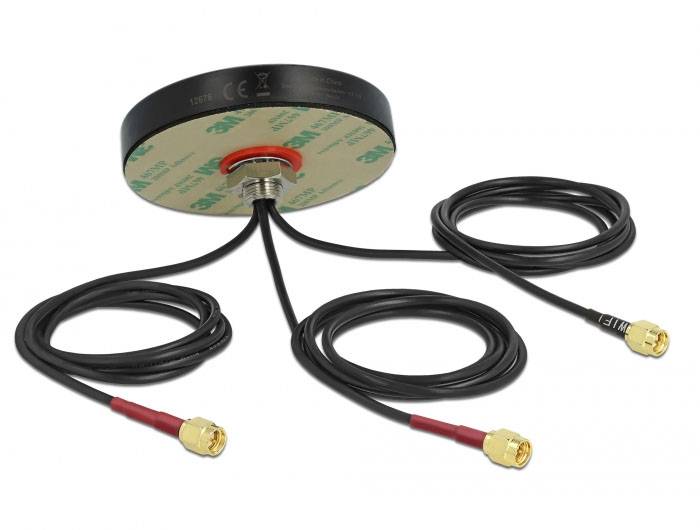

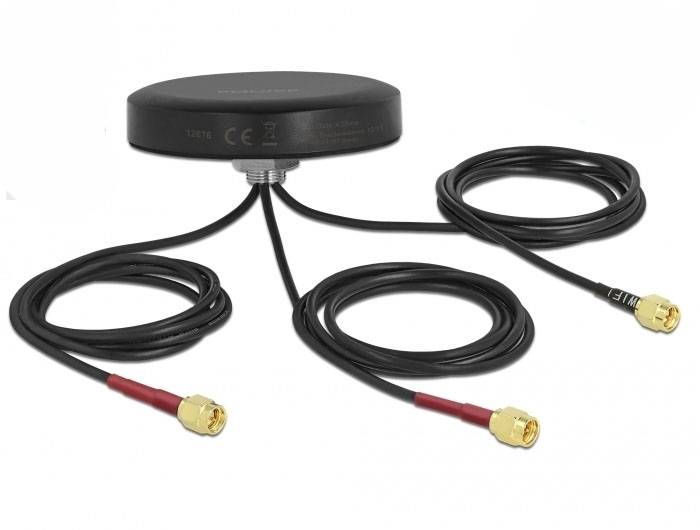

Delock 12676 Internal antenna LTE
EAN:
Part number:
Item no:
Datasheet (PDF)
LTE MIMO dual band WLAN 802.11 ac/ax/a/h/b/g/n antenna 3 x SMA connector RG-174 1 m screw mounting outdoor black
Highlights & Details
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
- Antenna type
Internal antenna
- Suitable for mains
LTE
- Width
81.3 cm
- Height
16.3 mm
- Cable design
Round
- Cable length
1 m
- Version
Cable
IP67
- Cable use
C13/C14 appliances
- Weight
0.15
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
3 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Diameter
8.13 cm
Documents & Downloads
Datasheet
Datasheet 3381607 Delock 12676 Internal antenna LTE
User & Safety Instructions
User & Safety Instructions 3381607 Delock 12676 Internal antenna LTE
Description
The Delock antenna allows you to use various LTE and WLAN bands indoors and outdoors. It is fully GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band WLAN, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz compatible
This text is machine translated.
This text is machine translated.
Features
- Connection 3 x SMA plug
- 2 x LTE:
- Frequency range:
- 698 MHz - 960 MHz
- 1710 MHz - 2690 MHz
- Impedance: 50 ohm
- VSWR 3.0
- Antenna gain 2.0 - 2.5 dBi
- Polarisation: Linear
- WLAN:
- Frequency range:
- 2400 MHz - 2483 MHz
- 4900 MHz - 5825 MHz
- Impedance: 50 ohm
- VSWR: ≤2.0
- Antenna gain 3 dBi
- Polarisation: Linear
- Mounting type: Screw mounting
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Protection class IP67
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.7 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Cable length incl. connection: Approx. 1 m.
- Dim. (Ø x H): Approx. 81.3 x 16.3 mm
System requirements
- Device with several free SMA connections
