Delock 12679 12679 LPWAN antenna 2 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

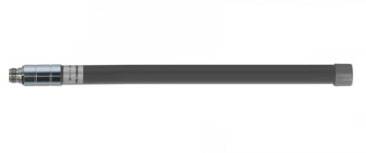

Delock LPWAN 433 + 868 MHz antenna N socket 2 dBi 72 cm omnidirectional rigid outdoor gray
- Omni-directional antenna N-type gray
- 2 dBi
- 0,433 - 0,868 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 0,433 - 0,868 GHz
- Impedance: 50 ohm
- Product type
LPWAN antenna
- Gain
2 dBi
- Type
Monopole antenna
- Antenna socket
N socket
- Antenna socket
N socket
- Weight
370 g
- No. of ports
1
- Polarisation
Vertical
- Width
22 mm
- Height
720 mm
- Length
72.0 cm
- Cable design
Round
- Cable length
0 cm
- Version
Cable
- Factory colour
Grey
- Depth
22 mm
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- Material (details)
Glass Fibre Reinforced Plastic (GFRP)
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Horizontal beam width
360°
Documents & Downloads
Datasheet
Datasheet 3381665 Delock 12679 12679 LPWAN antenna 2 dBi
User & Safety Instructions
User & Safety Instructions 3381665 Delock 12679 12679 LPWAN antenna 2 dBi
Description
Quick guide
This antenna from Delock enables the use of the 433 and 868 MHz bands indoors and outdoors.
LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
Features
- 1 x N socket
- Frequency range 433 + 868 MHz
- LoRa, NB-IoT, Sigfox, ZigBee, Z Wave
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- Operating temperature: -40 °C ~ 80 °C
- Colour: grey
- Dimensions (LxD): Approx. 72.0 x 2.2 cm
System requirements
- Device with an empty N connection
