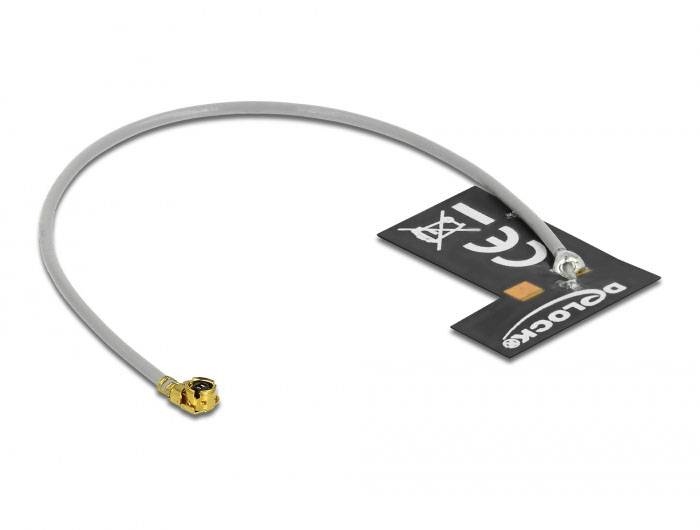

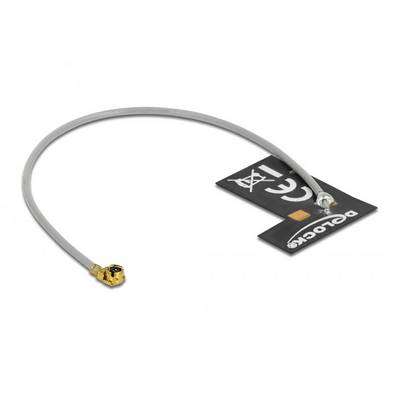

Delock 12693 12693 Wi-Fi antenna 2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock WLAN 802.11 b/g/n Antenna I-PEX Inc., MHF® I Connector 2 dBi 1.13 10 cm FPC internal adhesive mounting
Technical specifications
- 2,400 - 2,500 GHz
- Product type
Wi-Fi antenna
- Gain
2 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Internal
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
1
- Mounting type
Adhesive
- Width
18 mm
- Height
0.2 mm
- Length
22 mm
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
- Cable use
C13/C14 appliances
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382532 Delock 12693 12693 Wi-Fi antenna 2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382532 Delock 12693 12693 Wi-Fi antenna 2 dBi 2.4 GHz
Description
This Delock antenna allows the use of the 2.4 GHz band in the interior.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range 2400 MHz - 2500 MHz
- Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 2 dBi
- VSWR 2.5
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 70 °C
- FPC casing material
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Grey
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Cable diameter: Approx. 1.13 mm
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 22 x 18 x 0.2 mm
- Cable length incl. connection: Approx. 10 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
