Delock 12700 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

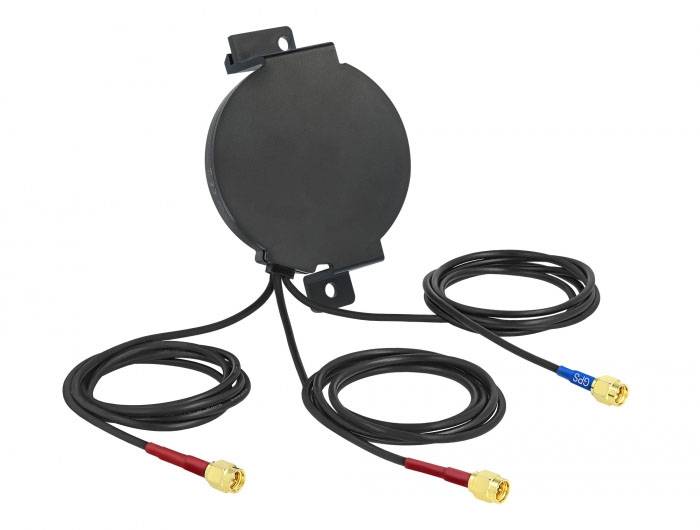

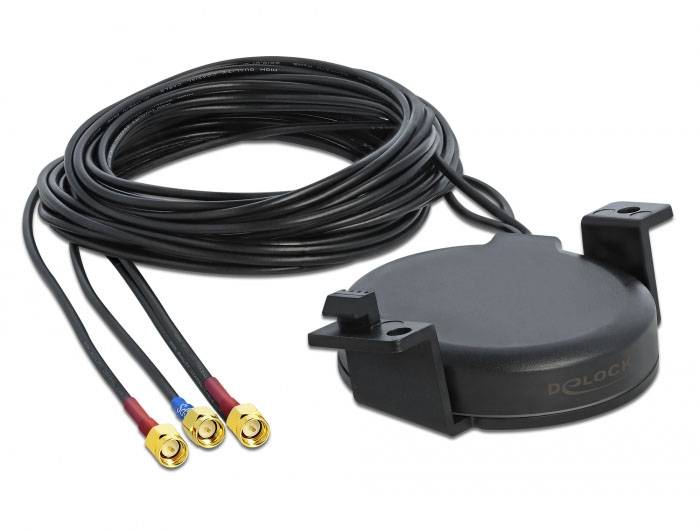

LTE MIMO GNSS antenna 3 x SMA connector RG-174 3 m screw mounting outdoors black
Technical specifications
- Material ABS synthetic
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
- Length
250 cm
- Antenna type
Internal antenna
- Width
81.3 mm
- Height
16.3 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.32
- UKCA
yes
- Gain
2.5 dB
- Impedance
50 Ohm
- FM band range
698 - 960 MHz
- Cord length
3 m
Documents & Downloads
Datasheet
Datasheet 3382535 Delock 12700 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382535 Delock 12700 Internal antenna
Description
This Delock antenna enables the use of various LTE and GNSS bands indoors and outdoors. It is fully GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band GNSS, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz compatible
This text is machine translated.
This text is machine translated.
Features
- Connection 3 x SMA plug
- 2 x LTE:
- Frequency range 698 MHz - 960 MHz 1710 MHz - 2690 MHz
- Impedance: 50 ohm
- VSWR 3.0
- Antenna gain 2.0 - 2.5 dBi
- Polarisation: Linear
- GNSS
- Frequency range:
- Galileo: E1, 1575.4200 MHz
- GPS L1, 1575.4200 MHz
- Antenna gain 2 dBi
- VSWR: ≤1.5
- Impedance: 50 ohm
- Polarization: RHCP
- LNA GNSS:
- Frequency range:
- Galileo: E1, 1575.4200 MHz
- GPS L1, 1575.4200 MHz
- Antenna gain 28 dBi
- Operating voltage 2.2 5.0 V
- Power consumption 5 - 15 mA
- VSWR: ≤2.0
- Impedance: 50 ohm
- Mounting type: Screw mounting
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Protection class IP67
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.7 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Cable length incl. connection: Approx. 3 m.
- Dim. (Ø x H): Approx. 81.3 x 16.3 mm
System requirements
- Device with several free SMA connections
