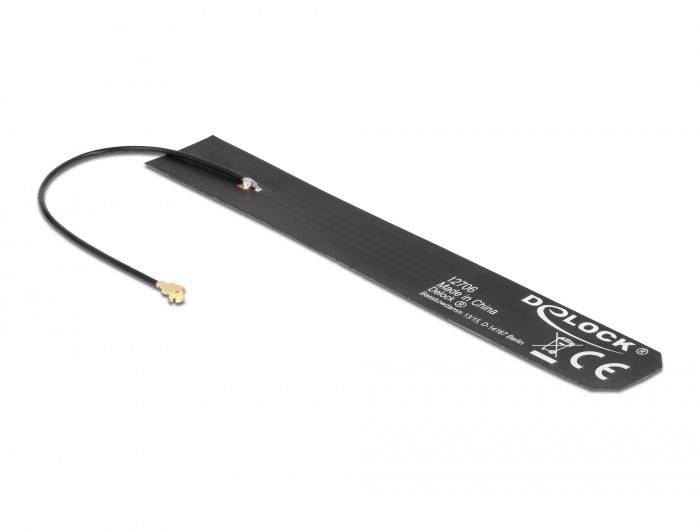

Delock 12706 Internal antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)
5G LTE antenna I-PEX Inc., MHF® I compatible plug 0 - 4 dBi omnidirectional FPC
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
112.5 cm
- Antenna type
Internal antenna
- Suitable for mains
5G
LTE
UMTS
- Width
16.2 mm
- Height
1.5 mm
- Cable design
Round
- Cable length
0.19 m
- Version
Cable
- Depth
112.5 mm
- Cable use
C13/C14 appliances
- Product type description
Zubehör Netzwerk
- UKCA
yes
- Antenna gain level (max)
4 dBi
- Impedance
50 Ohm
Documents & Downloads
Datasheet
Datasheet 3381980 Delock 12706 Internal antenna 5G, LTE, UMTS
User & Safety Instructions
User & Safety Instructions 3381980 Delock 12706 Internal antenna 5G, LTE, UMTS
Description
The Delock antenna allows you to use various 5G LTE bands indoors. It is fully GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, Dualband WLAN, Bluetooth, ISM, DECT, and LoRa compatible.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I compatible plug
- Frequency range 700 - 6000 MHz
- Antenna gain 0 - 4 dBi
- VSWR: ≤2.0
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature -40 °C ~ 85 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 112.5 x 16.2 x 1.5 mm
- Length including connections (L): Approx. 19 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
