Delock 12707 12707 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

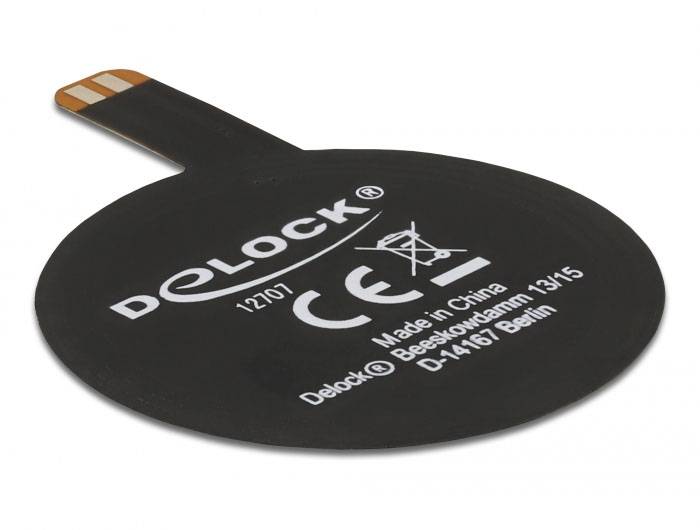

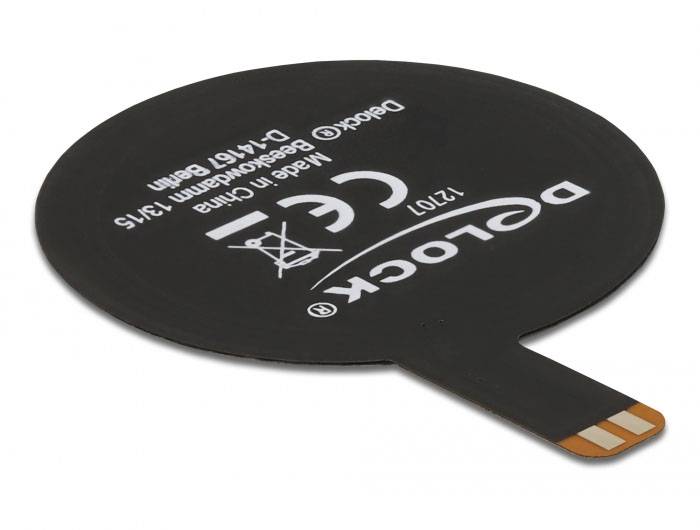

Delock NFC 13.56 MHz antenna SMT FPC round internal black adhesive mounting
- Black
- 0.01356 GHz
- 50 Ohm
Technical specifications
- Frequency band: 0.01356 GHz
- Impedance: 50 ohm
- Product type
Antenna
- Type
Flat antenna
- Used at
Internal
- Weight
0
- No. of ports
1
- Mounting type
Adhesive
- Width
40 mm
- Height
0.27 mm
- Length
54.47 mm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
54.5 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382536 Delock 12707 12707 Antenna
User & Safety Instructions
User & Safety Instructions 3382536 Delock 12707 12707 Antenna
Description
This Delock antenna allows the NFC 13.56 MHz bandwidth to be used internally.
This text is machine translated.
This text is machine translated.
Features
- SMT connection
- Frequency range 13.56 MHz
- Impedance: 50 ohm
- Rs (Ω): 1.0305
- La (UH): 1.5492
- Rp (kΩ): 8.9653
- Fr. (MHz) 89.9
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Dim. (LxWxH): Approx. 54.47 x 40.00 x 0.27 mm
System requirements
- Device with SMT soldering pads
