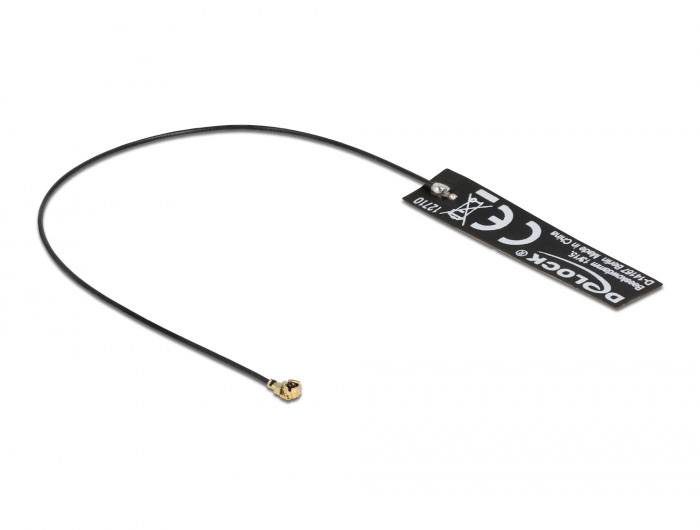

Delock 12710 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
GNSS BEIDOU GALILEO GLONASS GPS L1 L2 L5 antenna I-PEX Inc., MHF® I compatible plug 0 - 2 dBi omnidirectional FPC
Highlights & Details
Technical specifications
- Product type
Mobile phone antenna
- Factory colour
Black
- Gain
2 dBi
- Length
46 mm
- Antenna type
Internal antenna
- Features
+ aerial jack
- Width
10 mm
- Height
0.2 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Wireless charging
No
- Weight
0
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2 dBi
Documents & Downloads
Datasheet
Datasheet 3382026 Delock 12710 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382026 Delock 12710 Internal antenna
Description
This antenna by Delock receives the signals from both DOU, GALILEO, GLONASS and GPS satellites at the same time at GNSS devices.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I compatible plug
- Frequency range 1176 MHz 1227 MHz 1575 MHz 1602 MHz
- Antenna gain 0 - 2 dBi
- VSWR: ≤2.0
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature -40 °C ~ 85 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 46.0 x 10.0 x 0.2 mm
- Length including connections (L): Approx. 25 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
