Delock 12722 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

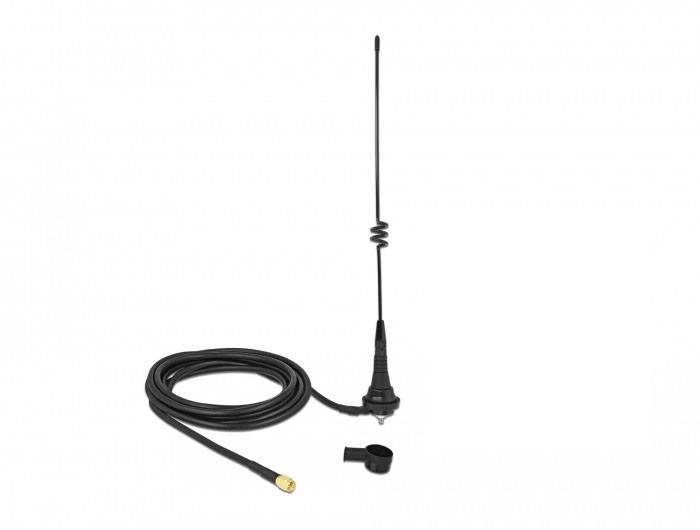

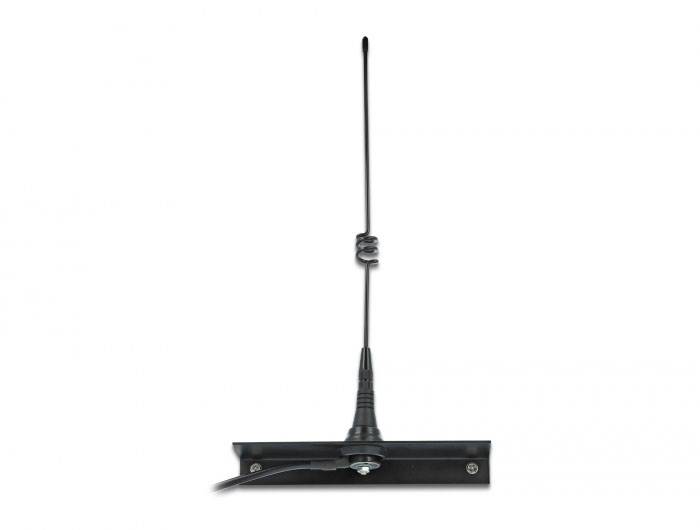

LPWAN 868 MHz antenna SMA plug 4.5 dBi solid omni-directional with connection cable RG-58 C/U 2.5 m outdoor black
Technical specifications
- RG-58 C/U CABLE TYPE
- Product type
Mobile phone antenna
- Factory colour
Black
- Gain
4.5 dBi
- Antenna type
Internal antenna
- Width
33 mm
- Height
210 mm
- Cable design
Round
- Cable length
2.5 m
- Version
Cable
- Depth
33 mm
- Cable use
C13/C14 appliances
- Weight
0.238
- UKCA
yes
- Operating temperature (T-T)
-50 - 70 °C
- Antenna gain level (max)
4.5 dBi
- Impedance
50 Ohm
- Power handling
100 W
Documents & Downloads
Datasheet
Datasheet 3382110 Delock 12722 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382110 Delock 12722 Internal antenna
Description
This Delock antenna allows you to use the 868 MHz bandwidth in indoor and outdoor areas.
LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
LPWAN
Low Power wide area networks (LPWAN) are radio networks that cover large distance ranges. They are characterized by a high reception sensitivity and a low energy intake.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 868 MHz
- LoRa, Sigfox, ZigBee, Z Wave
- Antenna gain 4.5 dBi
- Impedance: 50 ohm
- VSWR: ≤1.5
- Polarisation: Vertical
- HBW horizontal opening angle: 360°
- Operating temperature: -50 °C ~ 70 °C
- Mounting plate: Iron
- Colour, black
- Cable type: Coaxial
- RG-58 C/U CABLE TYPE
- Cable attenuation: 0.73 dB @ 1.0 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Minimum bend radius: Approx. 20.00 mm
- Cable length incl. connections: Approx. 2.5 m.
- Dimensions (LxD): Approx. 210 x 33 mm
- Mounting plate dimensions (LxWxH): Approx. 170 x 40 x 20 mm
- Maximum wind speed 60 m/s.
System requirements
- Device with a free SMA connection
