Delock 18604 HDMI switch Steel casing, Ultra HD compatibility, + remote control
EAN:
Part number:
Item no:
Datasheet (PDF)
HDMI Switch 4 x HDMI in to 1 x HDMI out 8K 60 Hz
Highlights & Details
- HDMI video port type
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
Micro USB
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
5 x
- No. of outputs
1 x
- Switch function
Key
Automatic
Remote control
- Distributor/switch features
Steel casing
Ultra HD compatibility
+ remote control
- Factory colour
Black
- Width
61 mm
- Height
14 mm
- Depth
136 mm
- Weight
286 g
- Resolutions (max.)
UHD 8K @ 60 Hz
- Supported audio file formats
Dolby TrueHD
DTS-HD
- Cable design
Round
- Cable length
75 cm
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
5 x
- Cable use
C13/C14 appliances
- Connections
USB-C® plug
- HDR support
Yes
- Material
Metal
- Connection type
HDMI
- UKCA
yes
- Remote control included
yes
- Quantity per pack
1 Stück(e)
- Consumer Electronics Control (CEC) support
yes
- DC-in jack
yes
- Bandwidth
48 Gbit/s
- Manual
yes
- Bandwidth
1200 MHz
- HDCP
yes
- HDMI in
4
- Number of HDMI outputs
1
- Power consumption (max)
5 W
Documents & Downloads
Datasheet
Datasheet 3382361 Delock 18604 HDMI switch Steel casing, Ultra HD compatibility, + remote control
User & Safety Instructions
User & Safety Instructions 3382361 Delock 18604 HDMI switch Steel casing, Ultra HD compatibility, + remote control
Description

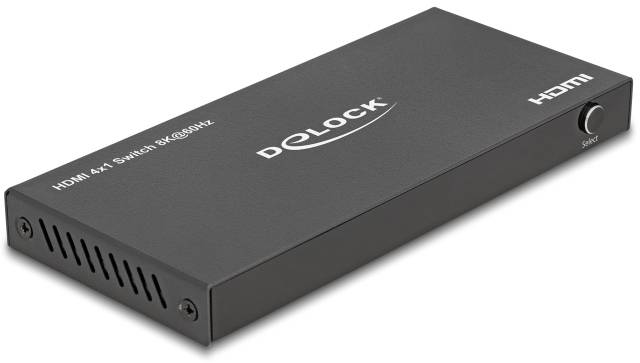

This HDMI switch from Delock can be used to operate up to four HDMI devices at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device or the remote control.
USB power supply

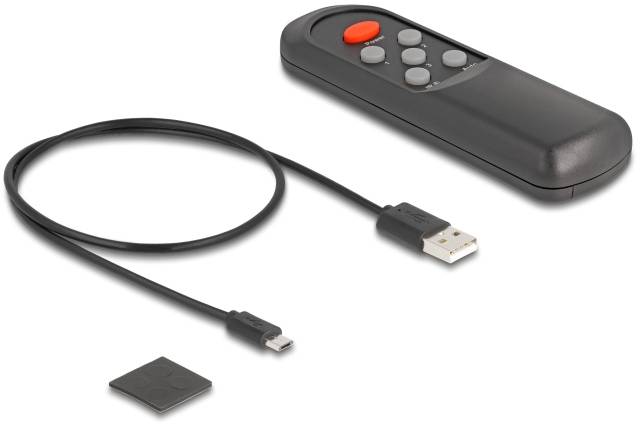

The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
USB power supply
The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
Features

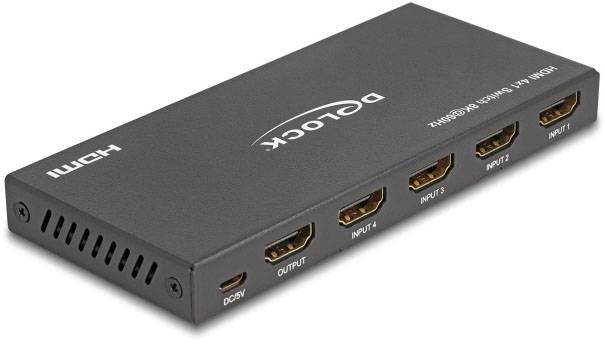

- Connections:
- Input:
- 4 x HDMI-A socket
- 1 x USB type micro-B socket (5 V power supply)
- Output:
- 1 x HDMI-A socket
- HDMI port switching: Automatic, button or infrared remote control
- LED displays for active HDMI connection
- Ultra High Speed HDMI specification
- Supports HDCP 1.4 and 2.3
- Supports HDR
- Supports CEC
- Supports Game Mode VRR
- Supports Dolby® TrueHD and DTS-HD Master Audio™
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
- Power consumption: max. 5 W
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 136 x 61 x 14 mm
System requirements
- HDMI cable
Power source with a free USB type A socket
2 x AAA battery
