Delock 18685 HDMI switch 3D playback mode, + remote control, Ultra HD compatibility, Steel casing 3840 x 2160 p
EAN:
Part number:
Item no:
Datasheet (PDF)
HDMI UHD switch 5 x HDMI in to 1 x HDMI out 4K
Highlights & Details
- HDMI video port type
- 3840 x 2160 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 4K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
PSU connector
HDMI® input
- Interfaces (output)
HDMI® output
- No. of inputs
5 x
- No. of outputs
1 x
- Switch function
Key
Remote control
Automatic
- Resolution (max.)
3840 x 2160 p
- Distributor/switch features
3D playback mode
+ remote control
Ultra HD compatibility
Steel casing
- Factory colour
Black
- Width
51 mm
- Height
20 mm
- Depth
123 mm
- Weight
448 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Cable design
Round
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Cable use
C13/C14 appliances
- Material
Metal
- Power consumption (ON)
2 W
- UKCA
yes
- AC adapter included
yes
- Remote control included
yes
- AC adapter input current
0.3 A
- Quantity per pack
1 Stück(e)
- Bandwidth
18 Gbit/s
- External power adapter
yes
- Manual
yes
- Dimensions (WxDxH)
123 x 51 x 20 mm
- Bandwidth
600 MHz
- HDCP
yes
- 3D
yes
- HDMI in
5
- Number of HDMI outputs
1
- AC adapter output current
1 A
Documents & Downloads
Datasheet
Datasheet 3380829 Delock 18685 HDMI switch 3D playback mode, + remote control, Ultra HD compatibility, Steel casing 3840 x 2160 p
User & Safety Instructions
User & Safety Instructions 3380829 Delock 18685 HDMI switch 3D playback mode, + remote control, Ultra HD compatibility, Steel casing 3840 x 2160 p
Description

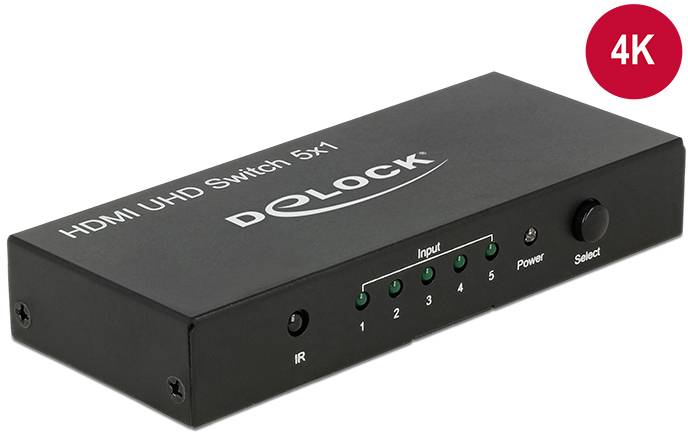

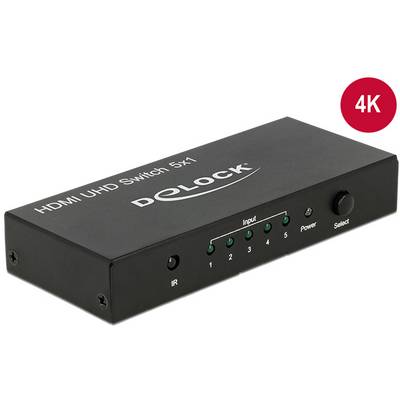

With this Delock HDMI switch, up to five HDMI devices can be operated at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the switch or the remote control.
This text is machine translated.
This text is machine translated.
Features

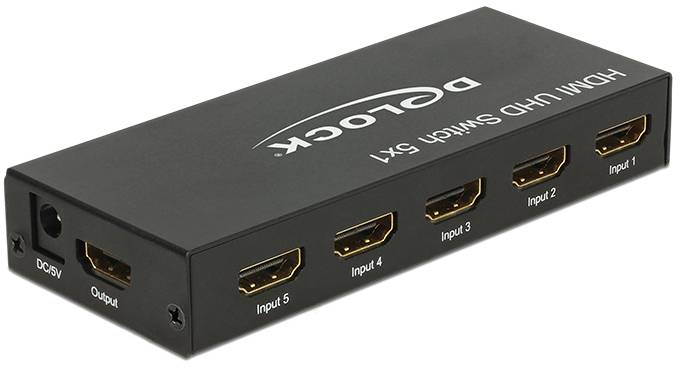

- Connections:
- Input:
- 5 x HDMI-A 19-pin socket
- 1 x DC 5 V power connection
- Output:
- 1 x HDMI-A 19-pin socket
- HDMI port switching: Automatic, button or infrared remote control
- LED displays for active HDMI connection
- High Speed HDMI specification
- Supports 3D Displays
- Supports HDCP 1.4 and 2.2
- Supports HDR
- Supports CEC
- Supports a resolution up to 3840 x 2160 @ 60 Hz
- (Depending on the system and the connected hardware)
- Video bandwidth up to 600 MHz / 6 Gbps, 18 Gbps max.
- Power consumption: max. 2.0 W
- Metal housing
- Colour, black
- Dim. (LxWxH): Approx. 123 x 51 x 20 mm
System requirements
- A free HDMI socket
HDMI cable
