Delock 18750 DisplayPort switch 3840 x 2160 p
EAN:
Part number:
Item no:
Datasheet (PDF)
DisplayPort 2 - 1 switch bi-directional 4K 60 Hz
Highlights & Details
- Video port type:DisplayPort
- 3840 x 2160 pixels
- Black
Technical specifications
- Product type
DisplayPort switch
- Supported monitors
2
- Resolution (max.)
3840 x 2160 p
- Factory colour
Black
- Width
82 cm
- Height
17 cm
- Depth
62 cm
- Weight
124 g
- Display resolution
3840 x 2160 Pixel
- No. of DisplayPort
3 x
- Material
Plastic
- Connection type
DisplayPort
- UKCA
yes
- DC-in jack
yes
- Manual
yes
Documents & Downloads
Datasheet
Datasheet 3381271 Delock 18750 DisplayPort switch 3840 x 2160 p
User & Safety Instructions
User & Safety Instructions 3381271 Delock 18750 DisplayPort switch 3840 x 2160 p
Description

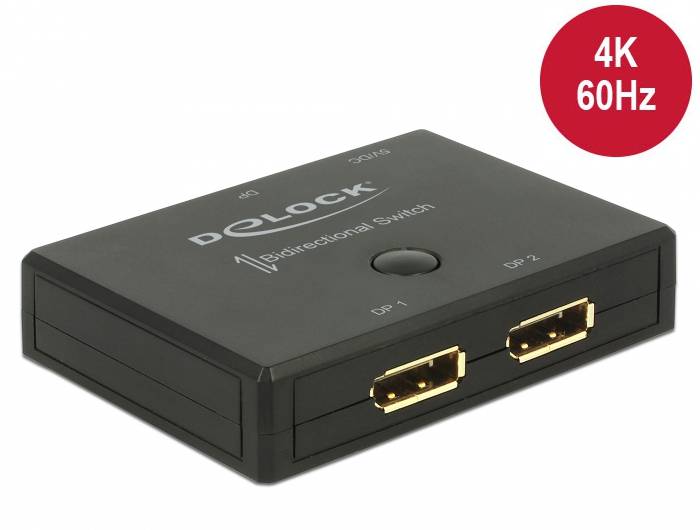

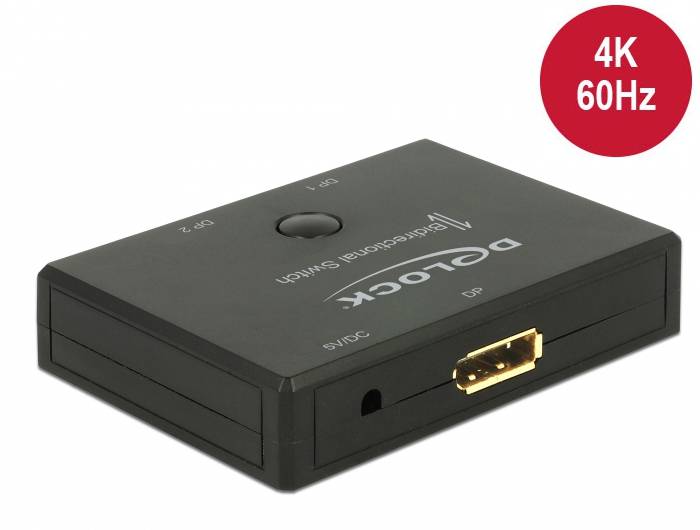

This DisplayPort switch from Delock is a manual bi-directional switch for connecting different devices with DisplayPort connection, which offers two different application options.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Features

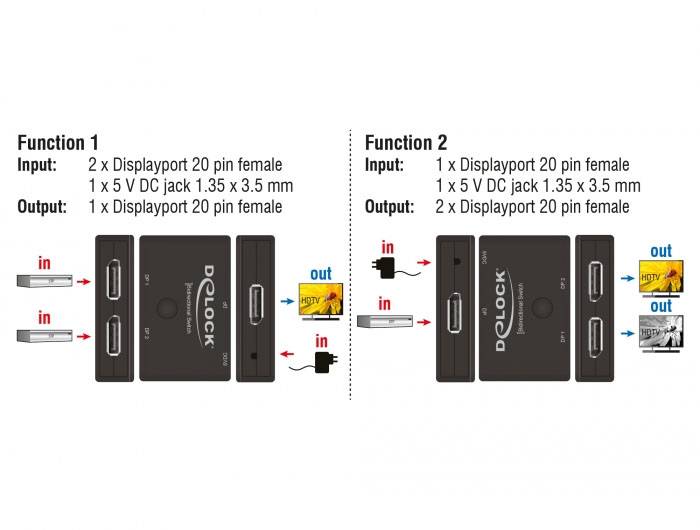

- Connections:
- Function 1
- Input:
- 2 x DisplayPort 20-pin socket
- 1 x 5 V DC power socket 1.35 x 3.5 mm
- Output 1 x DisplayPort 20-pin socket
- Function 2
- Input:
- 1 x DisplayPort 20-pin socket
- 1 x 5 V DC power socket 1.35 x 3.5 mm
- Output 2 x DisplayPort 20-pin socket
- DisplayPort port switch switching
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected one
- Hardware)
- Plastic housing
- Colour, black
- Dim. (LxWxH): Approx. 82 x 62 x 17 mm
System requirements
- A free DisplayPort socket
Display port cable
Power source via a free USB type A port
