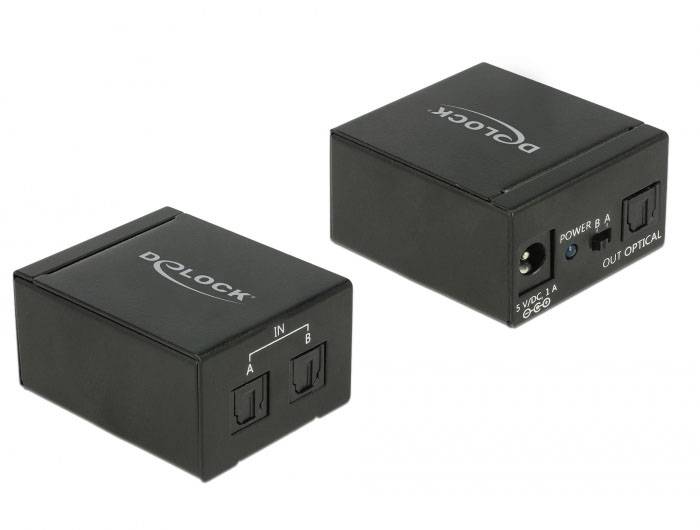

Delock 18767 Toslink switch Steel casing
EAN:
Part number:
Item no:
Datasheet (PDF)
TOSLINK switch 2 x TOSLINK in to 1 x TOSLINK out
Highlights & Details
- Audio input channels: 2
- 5.1 Channels
- Audio connections Toslink
- Audio output: Toslink
- Black
Technical specifications
- Product type
Toslink switch
- Interfaces (input)
Toslink
PSU connector
- Interfaces (output)
Toslink
- No. of inputs
2 x
- No. of outputs
1 x
- Switch function
Manual
- Distributor/switch features
Steel casing
- Factory colour
Black
- Width
41 mm
- Height
21 mm
- Depth
50 mm
- Weight
215 g
- Supported audio file formats
DTS
LPCM 5.1
Dolby-AC3
LPCM 2.0
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Max. output current
1 A
- Output voltage
5 V
- Power supply (details)
100-240 V
- UKCA
yes
- Audio-in ports quantity
2
- Audio-out ports quantity
1
Documents & Downloads
Datasheet
Datasheet 3382363 Delock 18767 Toslink switch Steel casing
User & Safety Instructions
User & Safety Instructions 3382363 Delock 18767 Toslink switch Steel casing
Description
With this TOSLINK switch of Delock, up to two TOSLINK devices can be operated at a TOSLINK amplifier. With the switch on the device, you can switch between the TOSLINK devices.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- Input:
- 2 x TOSLINK jack S/PDIF

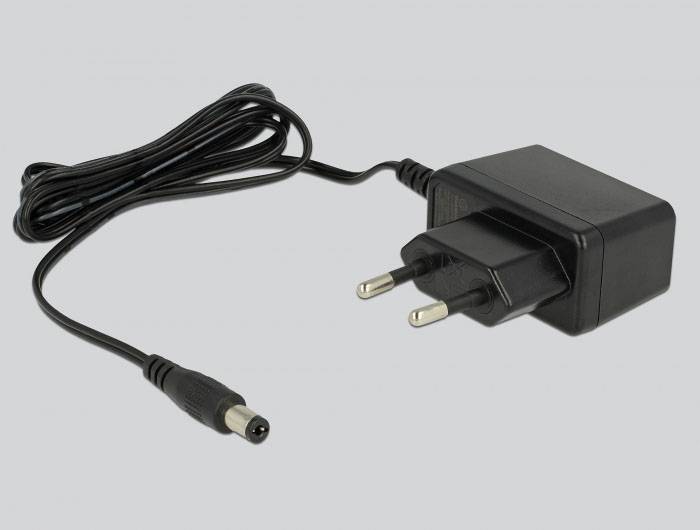

- 1 x DC 5 V power connection
- Output:
- 1 x TOSLINK jack S/PDIF
- Supported sampling rates 32 / 44.1 / 48 / 96 / 192 kHz
- Bit rate 16 - 24 Bit
- Supports all standard 2.0 and 5.1 audio formats:
- LPCM, Dolby Digital, DTS Audio
- Metal housing
- Colour, black
- Dim. (LxWxH): Approx. 50 x 41 x 21 mm
System requirements
- Digital optical audio signal
