Delock 18776 HDMI switch
EAN:
Part number:
Item no:
Datasheet (PDF)
HDMI 2 - 1 switch bi-directional 8K 60 Hz
Highlights & Details
- HDMI video port type
- 3840 x 2160 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
2
- Factory colour
Black
- Width
63 mm
- Height
18 mm
- Depth
83 mm
- Weight
186 g
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Material
Metal
- UKCA
yes
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Manual
yes
- HDMI in
1
- Number of HDMI outputs
2
Documents & Downloads
Datasheet
Datasheet 3383107 Delock 18776 HDMI switch
User & Safety Instructions
User & Safety Instructions 3383107 Delock 18776 HDMI switch
Description

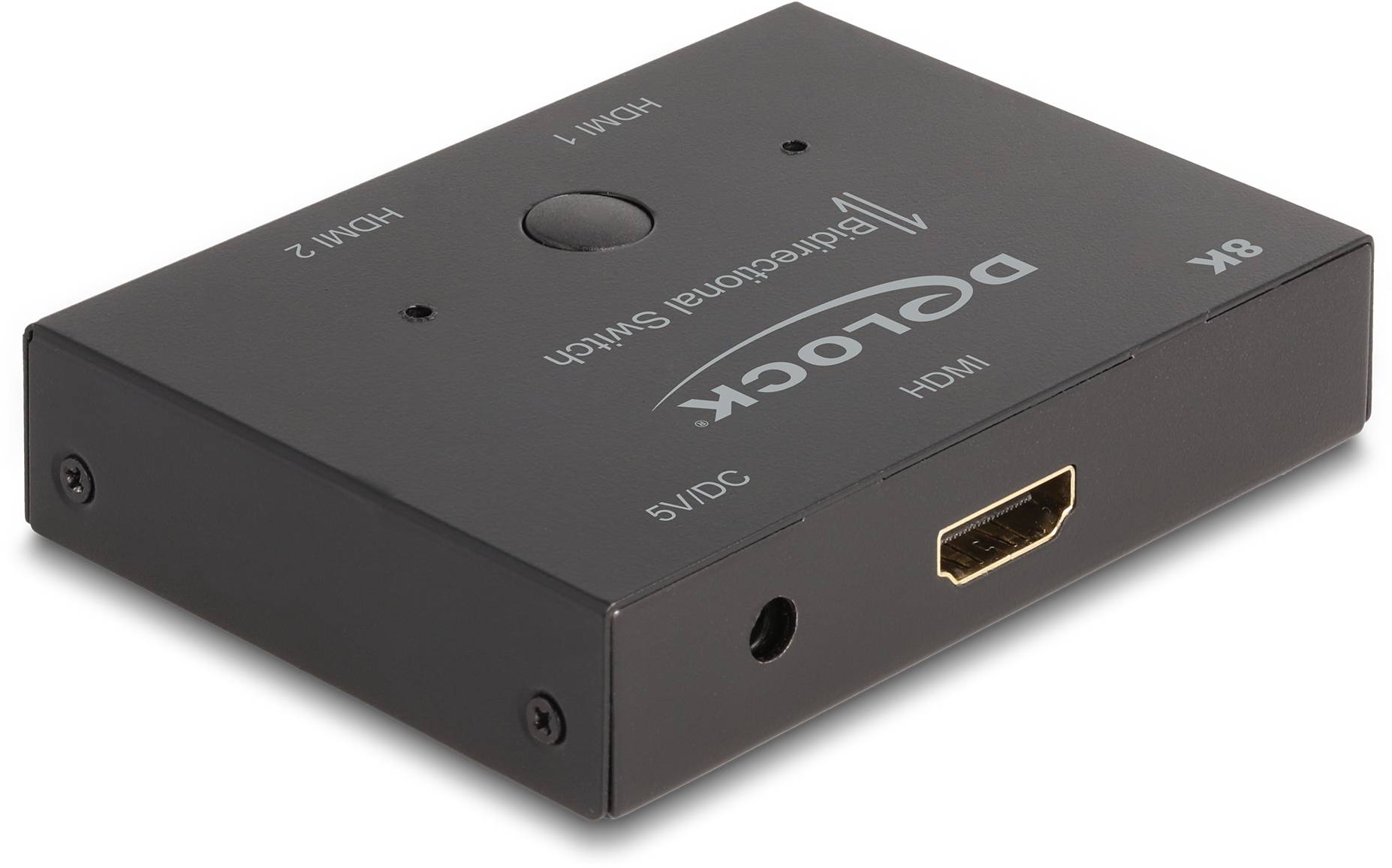

This HDMI converter from Delock is a manual bi-directional switch for connecting different devices with HDMI connection, which offers two different possible applications.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
1.
It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button.
2.
An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
Features
- Connections:
- Function 1
- Input 2 x HDMI type A socket
- Output 1 x HDMI type A socket
- Function 2
- Input 1 x HDMI type A socket
- Output 2 x HDMI type A socket

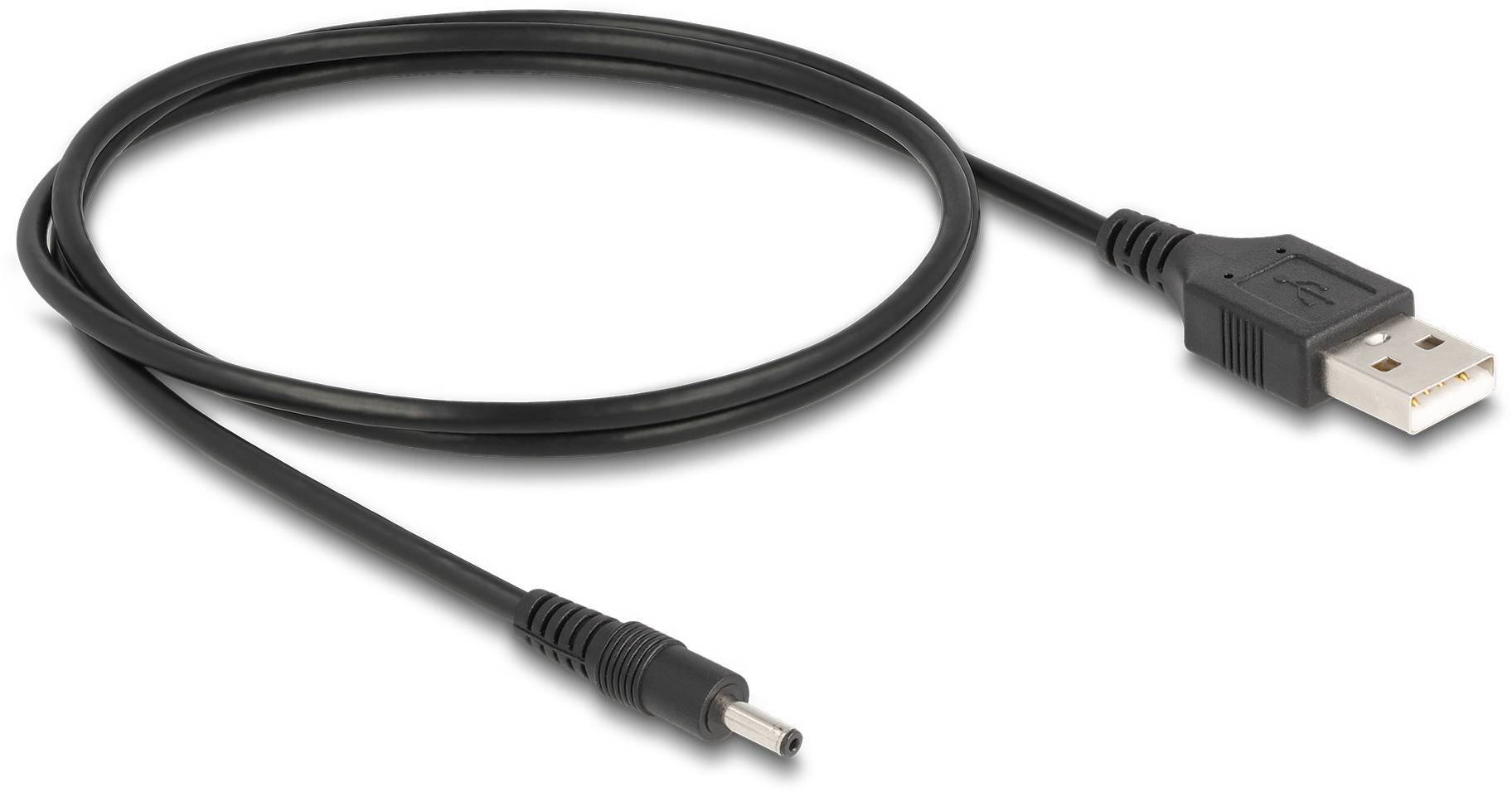

- 1 x 5 V DC power jack 1.35 x 3.5 mm (optional)
- Ultra High Speed HDMI specification
- Supports HDR
- HDMI port switching per button
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Do not Require external current supply
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 83 x 63 x 18 mm
System requirements
- HDMI cable
