Delock 18911 USB-C® (USB 3.2 2nd Gen) changeover switch Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Delock USB 10 Gbps USB Type-C switch 2 to 1 bidirectional 8K
Highlights & Details
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Hub interfaces: USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Number of connections: 2
- 10000 Mbit/s HD-type 8K Ultra HD 144 Hz
- USB Power Delivery
- Black plastic
Technical specifications
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- HD type 8K Ultra HD
- Cable type: Round cable
- Product type
USB-C® (USB 3.2 2nd Gen) changeover switch
- No. of inputs
3 x
- Interfaces (input)
USB C®
- No. of outputs
3 x
- Interfaces (output)
USB C®
- Switch function
Key
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
0.137
- Width
55 mm
- Height
15 mm
- Depth
55 mm
- Cable design
Round
- Cable length
0.5 m
- Version
Cable
- Frame rate
144 Hz
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- Cable use
C13/C14 appliances
- Max. output current
5 A
- Output voltage
20 V
- Type
USB
- UKCA
yes
- Ports quantity
2
- Data transfer rate
10000 Mbit/s
- Quantity per pack
1 Stück(e)
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
100 W
- Manual
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3382920 Delock 18911 USB-C® (USB 3.2 2nd Gen) changeover switch Black
User & Safety Instructions
User & Safety Instructions 3382920 Delock 18911 USB-C® (USB 3.2 2nd Gen) changeover switch Black
Description

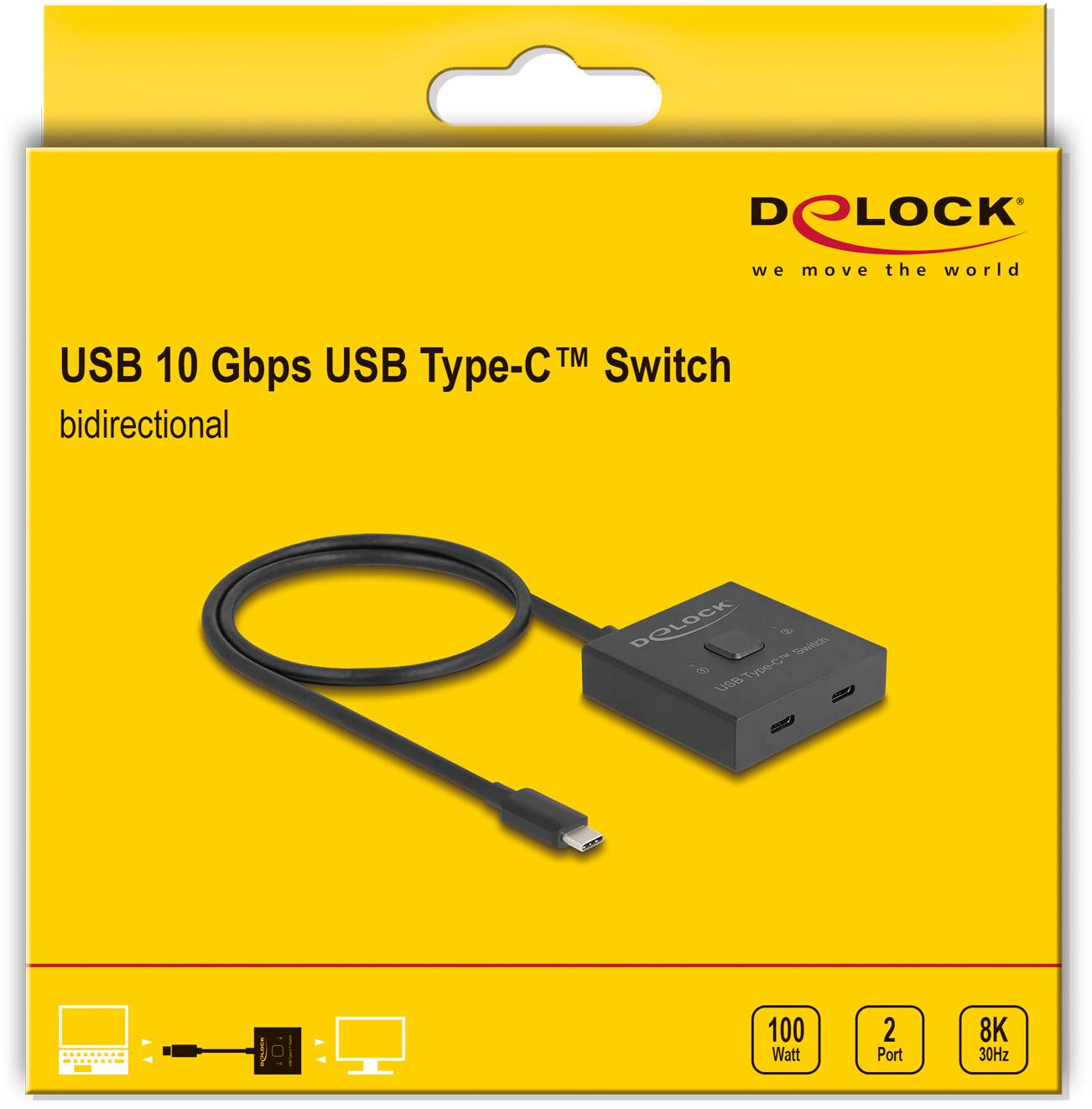

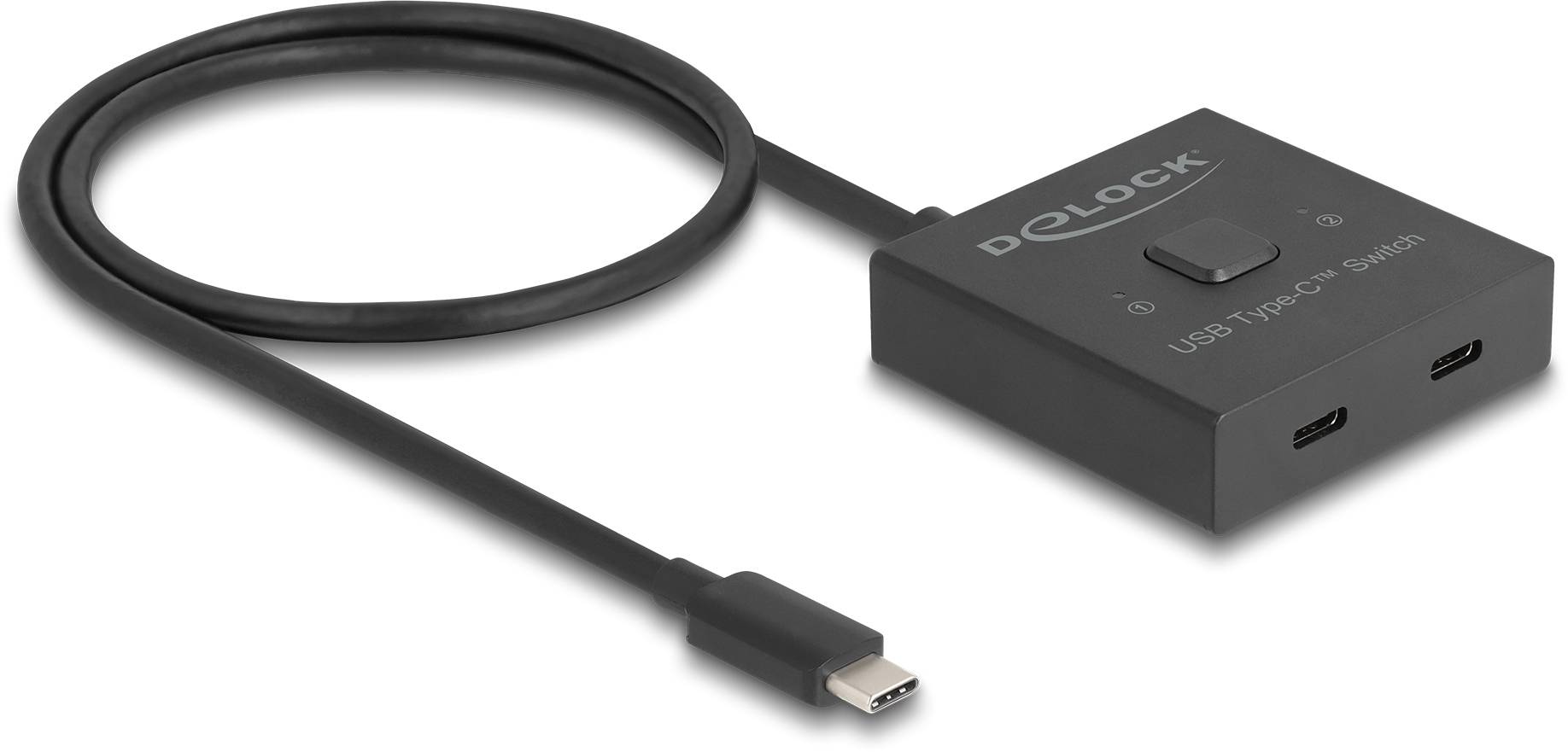

This Delock USB Type-C™ switch is a manual bi-directional switch for connecting various devices with a USB Type-C™ connector that offers two different applications.
Function 1
A USB Type-C™ device, such as a monitor or external memory, can be connected to two computers. The computer that is connected to the device can be selected by pressing a button.
Function 2
Two USB Type-C™ devices, such as a monitor or a USB-PD power adapter, can be connected to a computer. The device connected to the computer can be selected by pressing a button.
Can be used flexibly
The switch supports graphics signals with up to 8K resolution, USB-C™ with up to USB 10 Gbps data rate and Power delivery with up to 100 W. This makes it flexible for different tasks.
Note
Thunderbolt™ devices or cables are not supported.
Please use short and high-quality cables, especially for higher resolutions.
