Delock 20674 Heatshrink set Multicolour Shrinkage:2:1 1 pc(s)
EAN:
Part number:
Item no:
Product type
Heatshrink set
Heatshrink features
incl. content
Dispenser
Content
1 pc(s)
Factory colour
Multicolour
Shrinkage
2:1
Datasheet (PDF)
Highlights & Details
Heat-shrink sleeve tool box, colored, 590-piece
- 1 pc(s)
- Shrinkage: 2:1
- Multicolour
Technical specifications
- Shrink temperature range 70 - 125 °C.
- Product type
Heatshrink set
- Factory colour
Multicolour
- Shrinkage
2:1
- Heatshrink features
incl. content
Dispenser
- Content
1 pc(s)
- Material
Polyethylene (PE)
- Shrink temperature (min.)
70 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
70 °C
- Max. temperature
125 °C
- Manufacturer part #
20674
- Suitable for
Heatshrink
- Length
300 cm
- Type
20674
- Version
Adapter
- Screen size diagonal (inches)
24 inch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3382325 Delock 20674 Heatshrink set Multicolour Shrinkage:2:1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3382325 Delock 20674 Heatshrink set Multicolour Shrinkage:2:1 1 pc(s)
Description
This high-quality heat-shrink tubing set from Delock is used to protect and insulate cables, electric wires or wires. When the heat is applied, the hose completely encloses the cable and contracts. Thus, the cable is protected against influences of the weather and mechanical damage.
Large selection of different sizes and colors

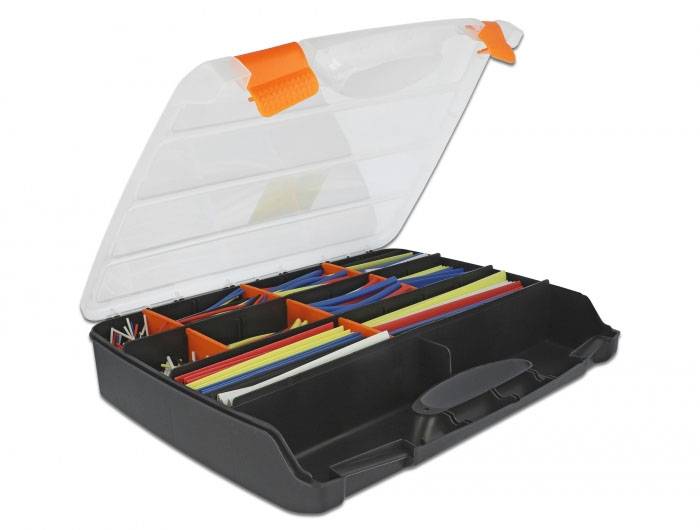

This kit includes hoses with ten different diameters, four different lengths and five different colors, which are versatile.

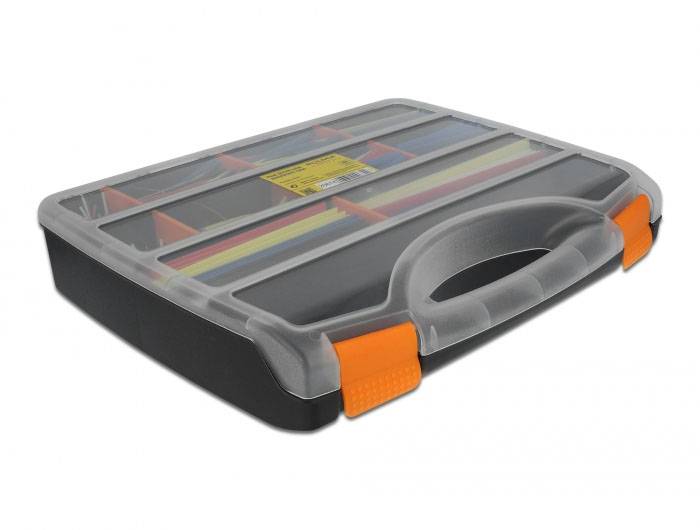

Practical storage case with carrying handle
The case is suitable for Ideal transport and protects the heat shrink tubes against dirt, dust and damage. Also, mechanics who require small quantities of different types of hose will be impressed by the range. The case can also be reused for various tool accessories, such as measuring tapes, screws, nuts, etc.
Variable fan sizes
By moving the dividers, the size of the individual compartments can be adjusted individually to add shrink tubes of different lengths.
Wide range of uses
The heat shrink tubing can be used in a workshop, at home or in industry, for example.
Use of heat-shrinkable sleeves
The heat shrink tube can be heated using a hot air gun, whereby the hose shrinks to half its original diameter when heated.
This text is machine translated.
Large selection of different sizes and colors
This kit includes hoses with ten different diameters, four different lengths and five different colors, which are versatile.
Practical storage case with carrying handle
The case is suitable for Ideal transport and protects the heat shrink tubes against dirt, dust and damage. Also, mechanics who require small quantities of different types of hose will be impressed by the range. The case can also be reused for various tool accessories, such as measuring tapes, screws, nuts, etc.
Variable fan sizes
By moving the dividers, the size of the individual compartments can be adjusted individually to add shrink tubes of different lengths.
Wide range of uses
The heat shrink tubing can be used in a workshop, at home or in industry, for example.
Use of heat-shrinkable sleeves
The heat shrink tube can be heated using a hot air gun, whereby the hose shrinks to half its original diameter when heated.
This text is machine translated.
Features
- Contents:
- 20 x diameter 1.0 mm black, length: Approx. 50 mm
- 20 x diameter 1.0 mm blue, length: Approx. 50 mm
- 20 x diameter 1.0 mm red, length: Approx. 50 mm
- 20 x diameter 1.0 mm white, length: Approx. 50 mm
- 20 x diameter 1.0 mm yellow, length: Approx. 50 mm
- 20 x diameter 1.5 mm black, length: Approx. 50 mm
- 20 x diameter 1.5 mm blue, length: Approx. 50 mm
- 20 x diameter 1.5 mm red, length: Approx. 50 mm
- 20 x diameter 1.5 mm white, length: Approx. 50 mm
- 20 x diameter 1.5 mm yellow, length: Approx. 50 mm
- 20 x diameter 2.0 mm black, length: Approx. 100 mm
- 20 x diameter 2.0 mm blue, length: Approx. 100 mm
- 20 x diameter 2.0 mm red, length: Approx. 100 mm
- 20 x diameter 2.0 mm white, length: Approx. 100 mm
- 20 x diameter 2.0 mm yellow, length: Approx. 100 mm
- 20 x diameter 3.0 mm black, length: Approx. 100 mm
- 20 x diameter 3.0 mm blue, length: Approx. 100 mm
- 20 x diameter 3.0 mm red, length: Approx. 100 mm
- 20 x diameter 3.0 mm white, length: Approx. 100 mm
- 20 x diameter 3.0 mm yellow, length: Approx. 100 mm
- 10 x diameter 4.5 mm black, length: Approx. 100 mm
- 10 x diameter 4.5 mm blue, length: Approx. 100 mm
- 10 x diameter 4.5 mm red, length: Approx. 100 mm
- 10 x diameter 4.5 mm white, length: Approx. 100 mm
- 10 x diameter 4.5 mm yellow, length: Approx. 100 mm
- 10 x diameter 6.0 mm black, length: Approx. 100 mm
- 10 x diameter 6.0 mm blue, length: Approx. 100 mm
- 10 x diameter 6.0 mm red, length: Approx. 100 mm
- 10 x diameter 6.0 mm white, length: Approx. 100 mm
- 10 x diameter 6.0 mm yellow, length: Approx. 100 mm
- 6 x diameter 10.0 mm black, length: Approx. 100 mm
- 6 x diameter 10.0 mm blue, length: Approx. 100 mm
- 6 x diameter 10.0 mm red, length: Approx. 100 mm
- 6 x diameter 10.0 mm white, length: Approx. 100 mm
- 6 x diameter 10.0 mm yellow, length: Approx. 100 mm
- 6 x diameter 13.0 mm black, length: Approx. 100 mm
- 6 x diameter 13.0 mm blue, length: Approx. 100 mm
- 6 x diameter 13.0 mm red, length: Approx. 100 mm
- 6 x diameter 13.0 mm white, length: Approx. 100 mm
- 6 x diameter 13.0 mm yellow, length: Approx. 100 mm
- 3 x diameter 19.0 mm black, length: Approx. 150 mm
- 3 x diameter 19.0 mm blue, length: Approx. 150 mm
- 3 x diameter 19.0 mm red, length: Approx. 150 mm
- 3 x diameter 19.0 mm white, length: Approx. 150 mm
- 3 x diameter 19.0 mm yellow, length: Approx. 150 mm
- 3 x diameter 25.0 mm black, length: Approx. 200 mm
- 3 x diameter 25.0 mm blue, length: Approx. 200 mm
- 3 x diameter 25.0 mm red, length: Approx. 200 mm
- 3 x diameter 25.0 mm white, length: Approx. 200 mm
- 3 x diameter 25.0 mm yellow, length: Approx. 200 mm
- Shrink ratio 2:1
- Shrink temperature 70 °C ~ 125 °C
- Material: Polyethylene
- Case dimensions (L x W x H): Approx. 380 x 310 x 70 mm
