Delock 20982 20982 Pushbutton 3 A 1 x On/(On)/Off momentary Red (W x D) 23 mm x 14 mm IP65 1 pc(s) Box
EAN:
Part number:
Item no:
Packaging type
Box
Product type
Pushbutton
Switch position
1 x On/(On)/Off
Switching current (max.)
3 A
Width
23 mm

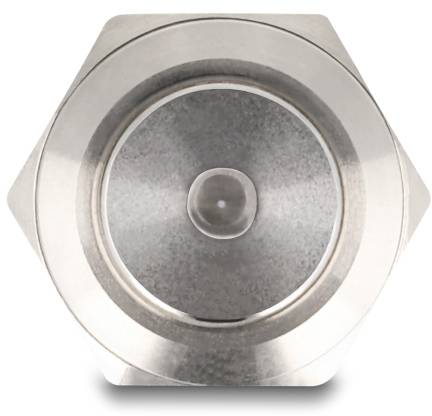

Delock 20982 pushbutton panel silver
Technical specifications
- Packaging type
Box
- Product type
Pushbutton
- Functions
momentary
- Colour
Red
- Switch position
1 x On/(On)/Off
- Material
Nickel
Stainless steel
- Switching current (max.)
3 A
- Width
23 mm
IP65
- Content
1 pc(s)
- Dim
(W x D) 23 mm x 14 mm
- Type
20982
- Cable design
Round
- Version
Cable
- Factory colour
Silver
- Depth
14 mm
- Cable use
C13/C14 appliances
Cable
- Input voltage
230 V
- UKCA
yes
- Illuminable
yes
- Maximum current
3 A
- Number of buttons
1 Buttons
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384054 Delock 20982 20982 Pushbutton 3 A 1 x On/(On)/Off momentary Red (W x D) 23 mm x 14 mm IP65 1 pc(s) Box
Description
This pushbutton from Delock is Ideal for installation in control panels, for example in industry, control or regulation systems. Buttons can also be found in the automotive industry or in the retail sector. For instance, as a doorbell or trigger for lighting systems with timers as found in building corridors.
Pushbuttons
The so-called button, or even push button, returns to its initial position.
Normally-closed and normally-open
The normally open contact (NO) establishes a connection between two HER contacts, while the normally closed contact (NC) triggers it.
This text is machine translated.
Pushbuttons
The so-called button, or even push button, returns to its initial position.
Normally-closed and normally-open
The normally open contact (NO) establishes a connection between two HER contacts, while the normally closed contact (NC) triggers it.
This text is machine translated.
Features

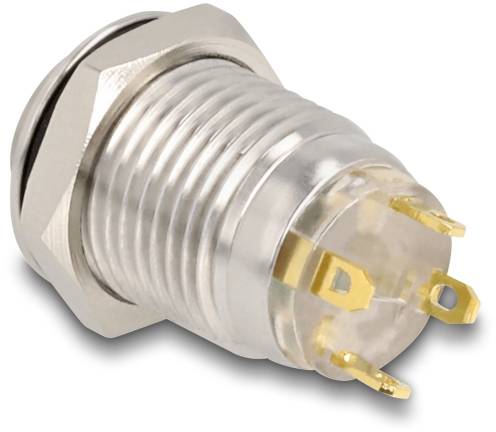

- Connection 4 x solder connection
- Switch type 1NO + 1 NC
- SWITCHING VOLTAGE AC 230 V~ / 3 A
- Number of contacts: 4
- Number of contacts: 1
- Function: Momentary
- Actuator: High
- Operating temperature: -25 °C - 55 °C
- Mounting hole diameter: Approx. 12 mm
- Wrench size hex nut 14 mm
- Installation depth: approx. 18 mm
- M12 thread
- LED lighting: Red
- LED voltage 12 V
- LED type: Power symbol
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
