Delock 43308 Patch panel 254 mm (10") CAT 6A 1 U Grey Equipped
EAN:
Part number:
Item no:
Highlights & Details
10″ patch panel 12 port CAT.6A gray
- Number of connections: 12
- CAT 6
- 1U
- Grey
Technical specifications
- Product type
Patch panel
- Rack size
254 mm (10")
CAT 6A
- Rack unit
1 U
- Patch panel design
Equipped
- Connection method
RJ45, auto-negotiation
- Connections
12 x RJ45 jack (external)
LSA block (internal)
- Width
254 mm
- Height
44 mm
- Depth
109 mm
- Factory colour
Grey
- Material
Metal
- Weight
0.86
- UKCA
yes
- Ports quantity
12
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382401 Delock 43308 Patch panel 254 mm (10") CAT 6A 1 U Grey Equipped
Description

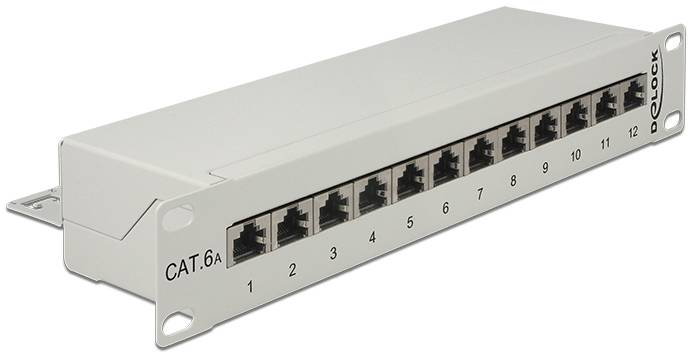

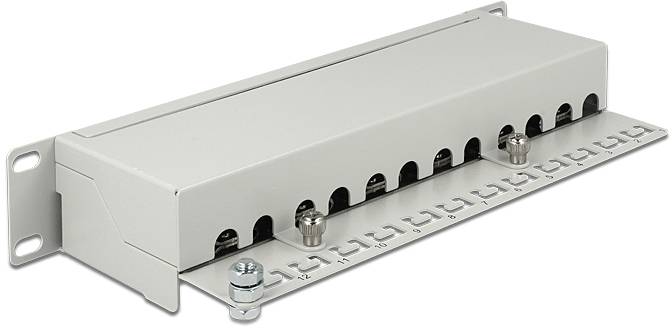

This patch panel from Delock can be installed in a 10″ device cabinet. Up to 12 network cables can be installed on the LSA strips with a positioning tool.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- External 12 x RJ45 sockets
- Internal: LSA strips
- For mounting in 10″ cabinets, 1 HE
- Cable guide 180°
- Shielded
- Complies with CAT.6smaller than/sub requirements according to ISO/IEC 11801 Edition 2.2,
- EN 50173-1:2011 and EN 60603-7-51, CAT.6A according to ANSI/TIA 568-C.2
- Assignment according to TIA-568A/B
- For cable diameters up to 0.644 mm (22 - 26 AWG)
- Suitable for solid and bunched conductors
- Metal housing
- Colour: Light gray RAL 7035
- Dim. (LxWxH): Approx. 254 x 109 x 44 mm
