Delock 60023 60023 PV connector 2.5 mm² Cable length 0 mm
EAN:
Part number:
Item no:
Datasheet (PDF)

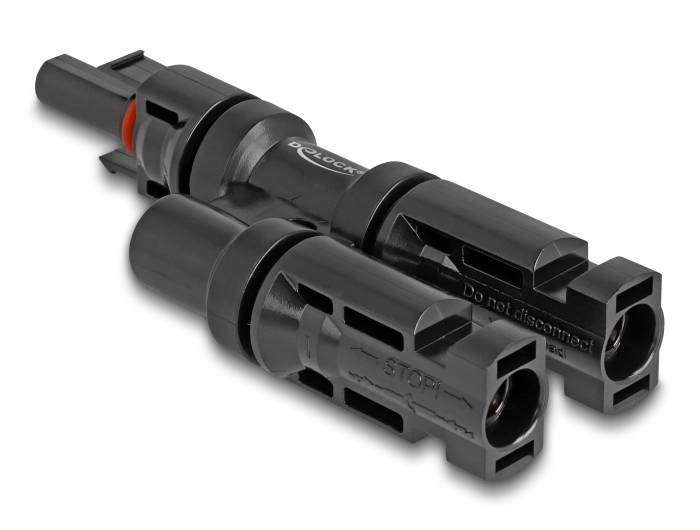

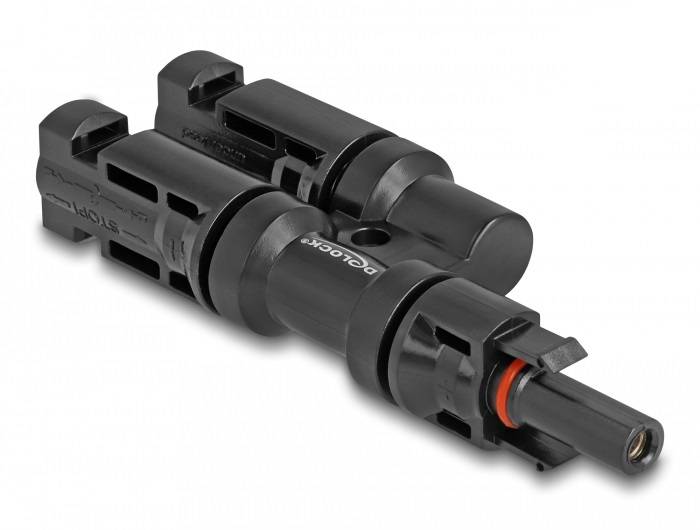

DL4 solar connector 1 x sockets for 2 x plugs
Technical specifications
- Product type: Solar module connector
- Product type
PV connector
- Cable length
0 mm
- Cross section per core
2.5 mm²
4 mm²
6 mm²
- Dim
(W x H x D) 39 x 18 x 104 mm
- Factory colour
Black
- Compatible with (details)
MC4
TS4
QC4
- Width
39 mm
- Height
18 mm
- Depth
104 mm
- Cross section
2.5 mm²
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Number of connectors
3
Documents & Downloads
Datasheet
Datasheet 3381985 Delock 60023 60023 PV connector 2.5 mm² Cable length 0 mm
User & Safety Instructions
User & Safety Instructions 3381985 Delock 60023 60023 PV connector 2.5 mm² Cable length 0 mm
Description
With this DL4 solar connector from Delock the energy won can be forwarded from a photovoltaic system.
DL4 connectors
The DL4 plugs and sockets have a snap-in function, which prevents undesired interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.
IP67 dust and waterproof
The DL4 solar connector is protected from dirt and moisture.
This text is machine translated.
DL4 connectors
The DL4 plugs and sockets have a snap-in function, which prevents undesired interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.
IP67 dust and waterproof
The DL4 solar connector is protected from dirt and moisture.
This text is machine translated.
Features
- Connections:
- 1 x DL4 socket
- 2 x DL4 plugs
- Cable cross-section: Approx. 2.5, 4, 6 mm²
- Compatible with MC4, TS4, QC4
- Operating temperature -40 °C ~ 85 °C
- Protection class IP67
- Max. voltage 1000 V
- Colour, black
- Dimensions (LxWxH): Approx. 10.4 x 3.9 x 1.8 cm
System requirements
- Multiple free DL4 ports
