Delock 60028 60028 PV plug 4 mm² Cable length 0 mm
EAN:
Part number:
Item no:
Datasheet (PDF)

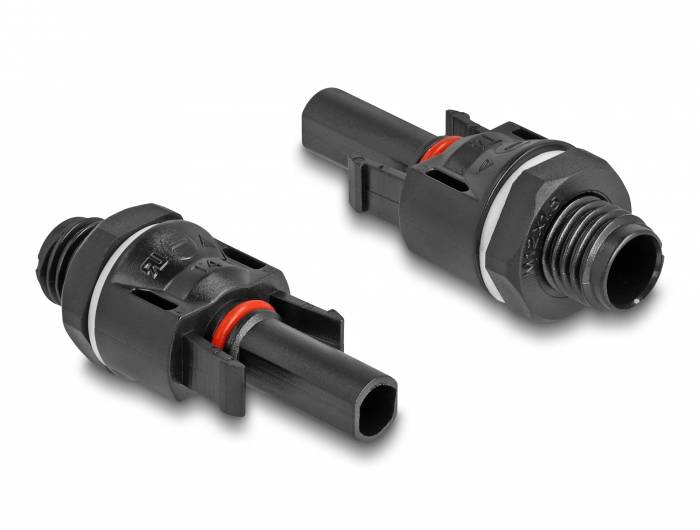

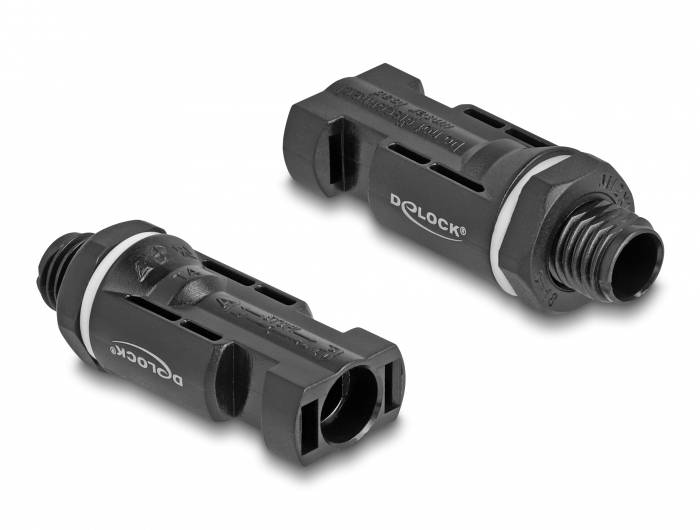

DL4 solar connectors for crimping, plug and socket, black 2 pieces
Technical specifications
- Product type: Solar module connector
- Product type
PV plug
- Cable length
0 mm
- Cross section per core
4 mm²
- Dim
(W x H x D) 39 x 18 x 104 mm
- Factory colour
Black
- Compatible with (details)
MC4
TS4
QC4
- Width
39 mm
- Height
18 mm
- Depth
104 mm
- Cross section
4 mm²
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 90 °C
- Quantity per pack
2 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381990 Delock 60028 60028 PV plug 4 mm² Cable length 0 mm
User & Safety Instructions
User & Safety Instructions 3381990 Delock 60028 60028 PV plug 4 mm² Cable length 0 mm
Description
These DL4 solar connectors for Delock crimping can be used in a solar generator connection box to protect against overloads and the effects of short circuits. The DL4 plugs and sockets have a snap-in function, which prevents undesired interruptions and ensures a secure connection. The connection can be released again with the appropriate tool. The DL4 solar connectors are protected from dirt and moisture.
This text is machine translated.
This text is machine translated.
Features

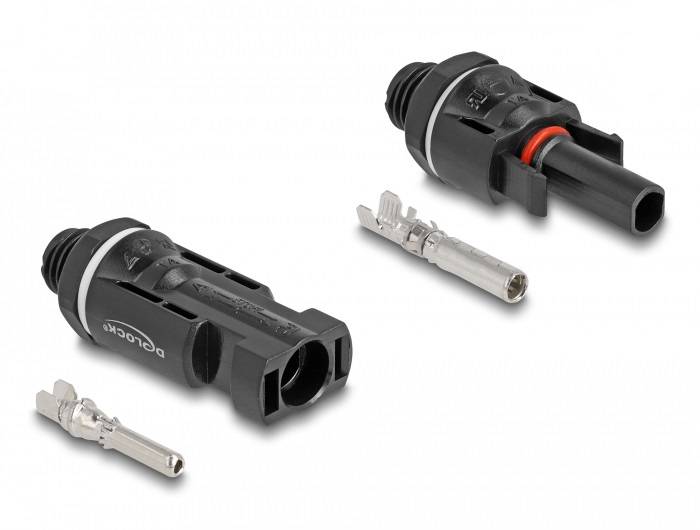

- Connections:
- 1 x DL4 plug for crimping
- 1 x DL4 socket for crimping
- Cable cross-section: Approx. 4 mm²
- Compatible with MC4, TS4, QC4
- Operating temperature: -40 °C ~ 90 °C
- Protection class IP67
- Max. voltage 1000 V
- Colour, black
- Dimensions (LxWxH):
- Plug approx. 5.0 x 1.9 x 1.2 cm
- Socket approx. 5.0 x 1.9 x 1.9 cm
System requirements
- A free DL4 connection
