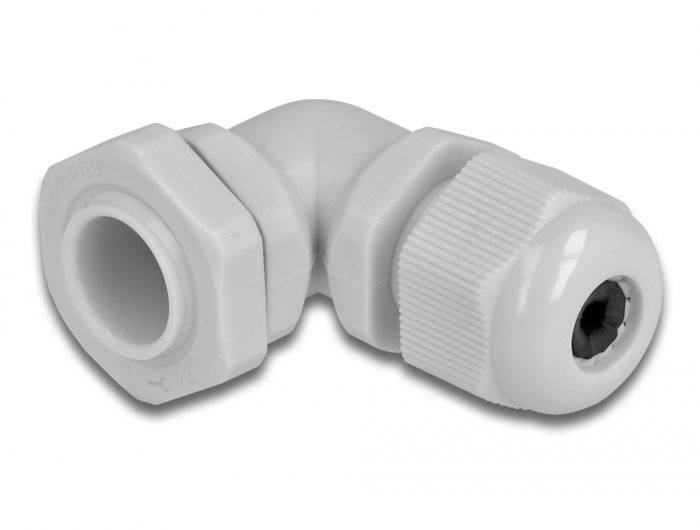

Delock 60295 angled PG9 Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
External thread
PG9
Material
Plastic
Terminal Ø (max.)
8 mm
Features
angled
Factory colour
Grey
Datasheet (PDF)
Cable gland 90° angled PG9 GRAY
Technical specifications
- Form factor: Angled
- Features
angled
- Factory colour
Grey
- External thread
PG9
- Material
Plastic
- Terminal Ø (max.)
8 mm
IP68
- Weight
0
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60295
- Type
60295
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
8 mm
- Quantity per pack
1 Stück(e)
- Cable diameter (min)
4 mm
- Cable diameter (max)
8 mm
- Spanner width
1.9 cm
Documents & Downloads
Datasheet
Datasheet 3383177 Delock 60295 angled PG9 Plastic Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383177 Delock 60295 angled PG9 Plastic Grey 1 pc(s)
Description
This cable screwing by Delock enables a watertight seal to the housing for conducting cables and electrical lines. The angled design is perfect for using the cable gland in installation areas with cramped spaces.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Thanks to its robust construction, cable glands are often used in automation and in machinery.
This text is machine translated.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Thanks to its robust construction, cable glands are often used in automation and in machinery.
This text is machine translated.
Features
- Thread size: PG9
- Thread length: 8 mm
- Wrench width: 19 mm
- Protection class: IP68
- Cable diameter:
- min. 4 mm
- max. 8 mm
- Operating temperature: -40 °C ~ 100 °C
- Material: plastic
- Colour: Grey RAL7035
