Delock 60334 angled Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
Material
Plastic
Terminal Ø (max.)
14 mm
Features
angled
Factory colour
Grey
IP rating
IP68
Datasheet (PDF)
Cable screwing 90° angled PG16 GRAY
Technical specifications
- Form factor: Angled
- Features
angled
- Factory colour
Grey
- Material
Plastic
- Terminal Ø (max.)
14 mm
IP68
- Weight
0.026
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60334
- Type
60334
- Version
Adapter
- UKCA
yes
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
1 cm
- Quantity per pack
1 Stück(e)
- Cable diameter (min)
1 cm
- Cable diameter (max)
1.4 cm
- Spanner width
2.7 cm
Documents & Downloads
Datasheet
Datasheet 3381736 Delock 60334 angled Plastic Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3381736 Delock 60334 angled Plastic Grey 1 pc(s)
Description

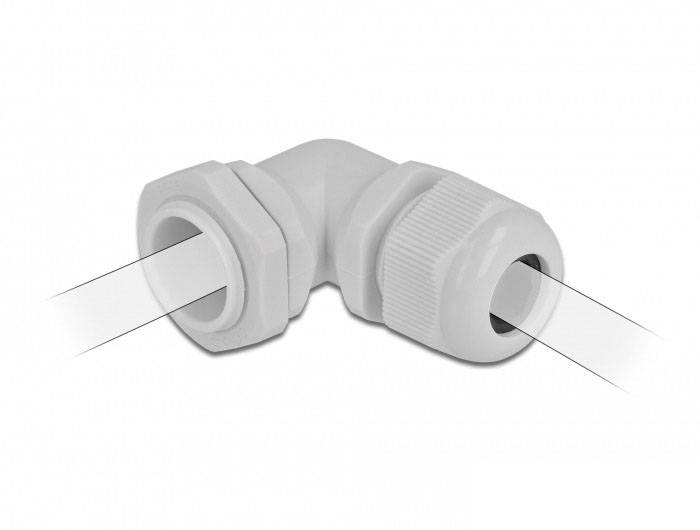

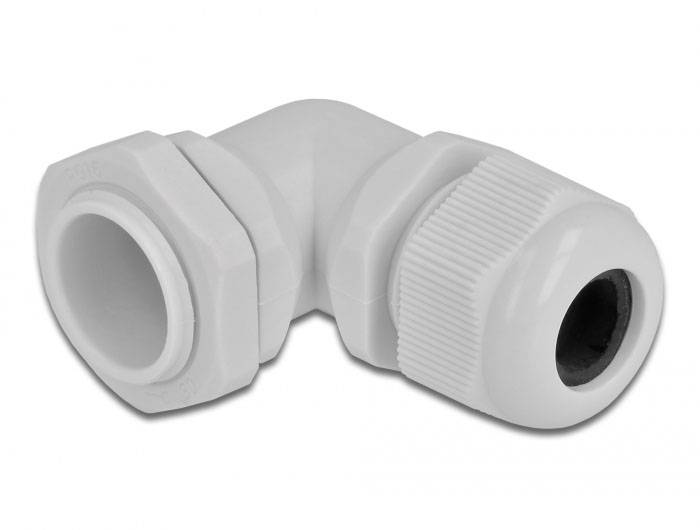

This cable screwing by Delock enables a watertight seal to the housing for conducting cables and electrical lines. The angled design is perfect for using the cable gland in installation areas with cramped spaces.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Thanks to its robust construction, cable glands are often used in automation and in machinery.
This text is machine translated.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Thanks to its robust construction, cable glands are often used in automation and in machinery.
This text is machine translated.
Features
- PG16 thread size
- Thread length: 10 mm
- Width 27 mm
- Protection class: IP68
- Cable diameter:
- min. 10 mm
- max. 14 mm
- Operating temperature: -40 °C ~ 100 °C
- Material: plastic
- Colour: Grey RAL7035
